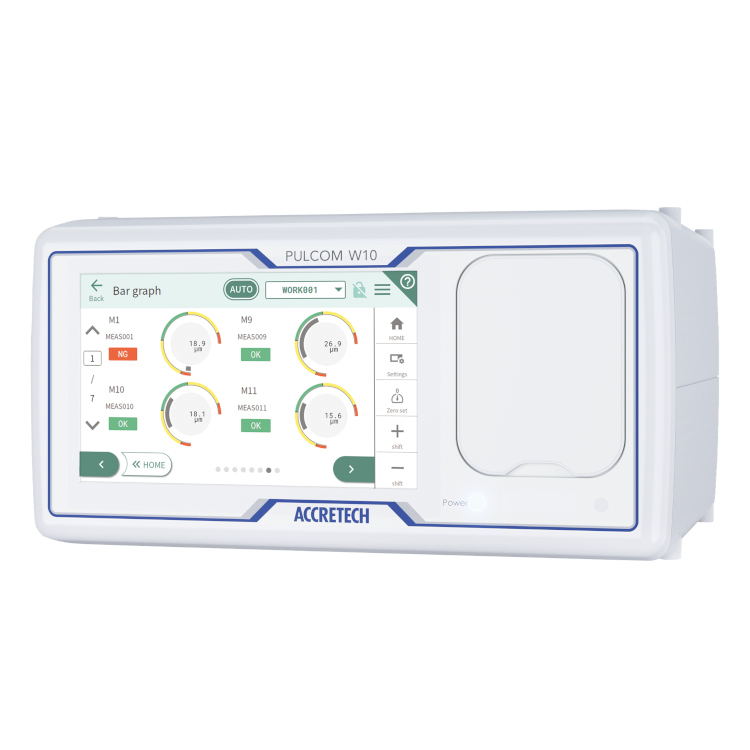

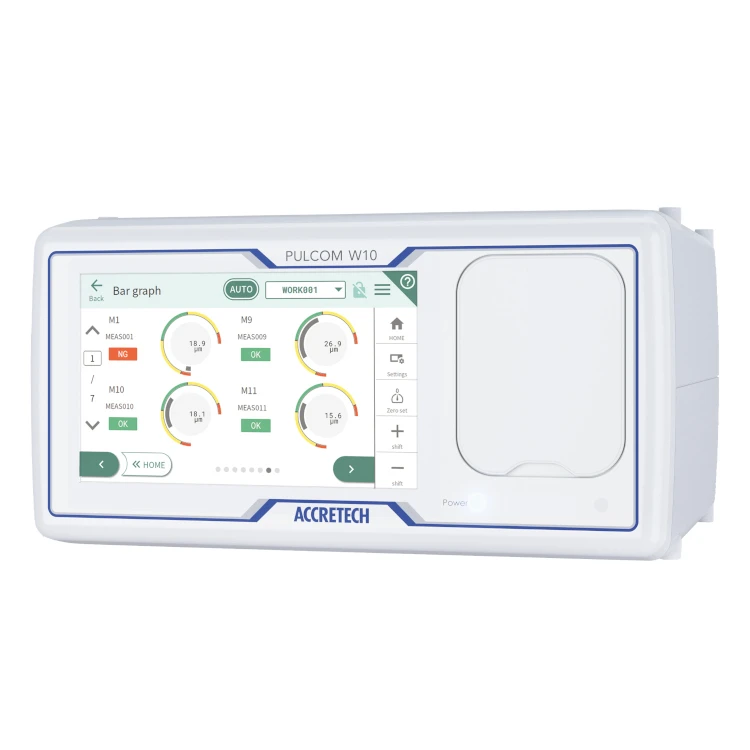

PULCOM W10
Features
Measurement becomes more flexible！
Greatly improved capabilities to meet various measurement needs.

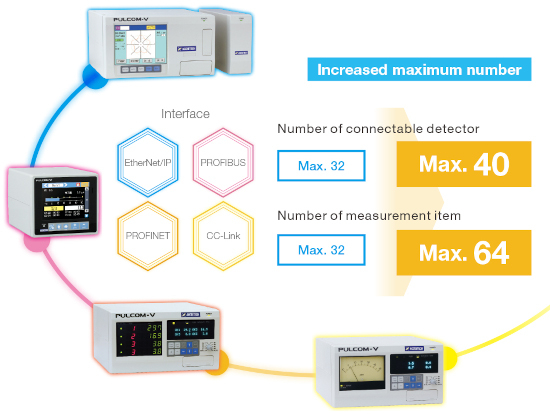

Support diverse network on site
PULCOM W10 supports diverse Interface such as EtherNet/IP and PROFIBUS in addition to existing I/O network.
PULCOM W10 assists IoT to achieve smart factory.
All-in-one solution for high-end model of PULCOM V series
PULCOM W10 is compatible with any model of PULCOM V series by eliminating restriction on use for particular models. PULCOM V7 and PULCOM V8 can be replaced to PULCOM W10.
*PULCOM V series high-end models are PULCOM V7/V8/V9/V10.

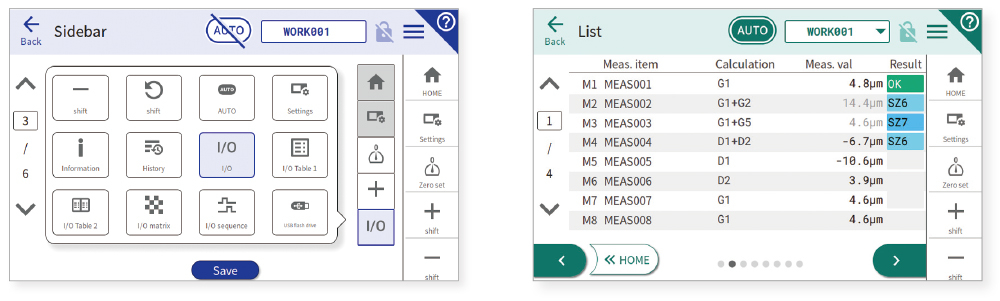

Intuitive and User-friendliness
Simple and intuitive user interface aims at helping operators.
User-friendly screen titles assist smooth transition on the screen.
Excellent Help functions :
Instruction videos and manuals can be accessed via a QR code to assist operators.
Support 10 languages :
W10 supports English, Chinese, Korean, Indonesian, Spanish, Portuguese, German, French to assist local needs at the site.

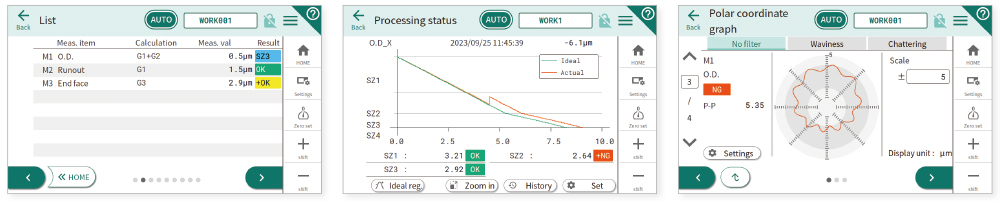

Upgraded Screen layout to boost visibility
Font size and display colors on the screen are adjusted to boost visibility.

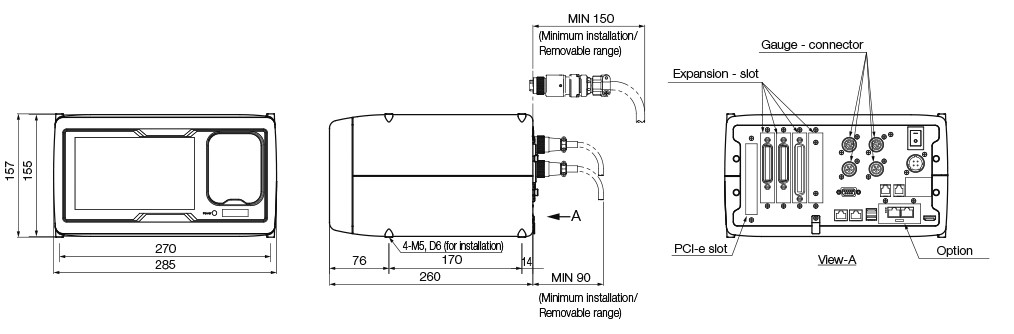

External view
Specifications
| Basic specifications | |
| Product name | PULCOM W10 |
| Model | E-PW100x |
| Application | In-Process/Post-Process |
| Display | 7.0-inch WVGA full color |
| Display items | Measurement result, list of items, settings |
| Display range of measurement values | ±999999.99 m ( Limited with the kind of gauge) |
| Display resolution | 1 μm, 0.1 μm, 0.01 μm |
| Units on display | Select from μm, mm |
| Human interface | Resistive touch panel |
| Sampling speed | 1 msec |
| Data update time | 8 msec |
| IP code | Front face panel：IP54 Back face panel：Dustproof・Non-waterproof casing |
| Ambient usage temperature/humidity for use | 0 ～ 50℃ / 10 ～ 90% R.H. |
| Vibration resistance/Shock resistance | Compliant with JIS C 60068-2-6 |
| CE mark | Compliant |
| Outer dimensions (W)×(D)×(H) /Weight | 285 × 260 ×157mm / 4.5kg(exc. cable) |
| Power source/Power consumption | DC24 V ±10％ / 45 W |
| Accessories | - |
| I/O | ✓（Option） |
| Ethernet | ✓ |
| RS-232C | ✓（Option） |
| Analog data input output | ✓（Option） |
| Fieldbus | ✓ CC-Link, PROFIBUS, PROFINET, EtherNet/IP, DeviceNet |
| USB | ✓ |
| Number of detector connection | Max. 40 |
| Number of expansion units | Max.16 ( Limited due to combination) |
| Number of measurement items | Max. 64 ( In-process Max. 8) |
| Judgment output | Max.100 (In-process Max. 7) |
