Features

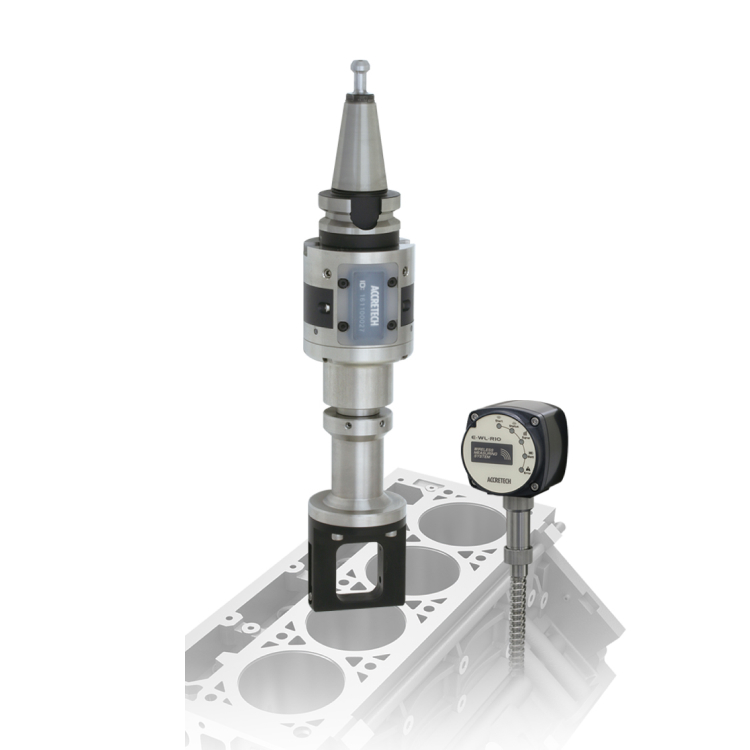

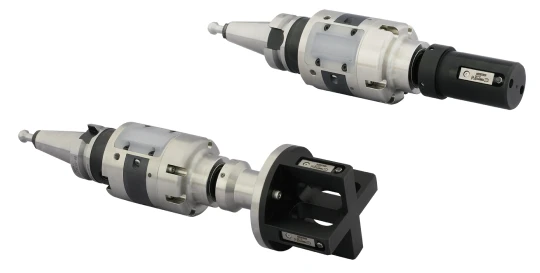

Bore Gauge for ATC
This is Wireless bore gauge for ATC(Automatic tool changer).
In-line measuring has realized by install the bore gauge on tool magazine like a machining center as same as cutting tools. Bore gauge measures and controls precision hole and deep hole in high accuracy without changeover.
Scalability
Compatible with fieldbus. It’s easy to connect to CNC and PLC.

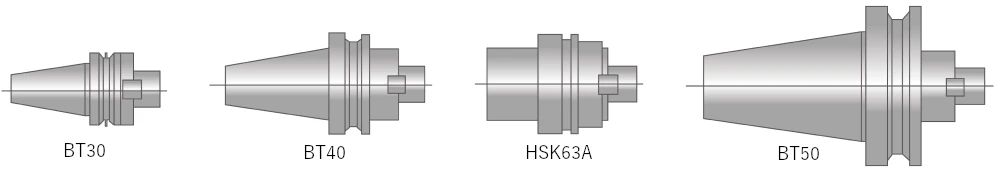

General-purpose tool holder is usable
Bore gauge is compatible for the shank standard like BT, HSK, CAPTO and KM. It can be installed to your currently using machining center without no change.

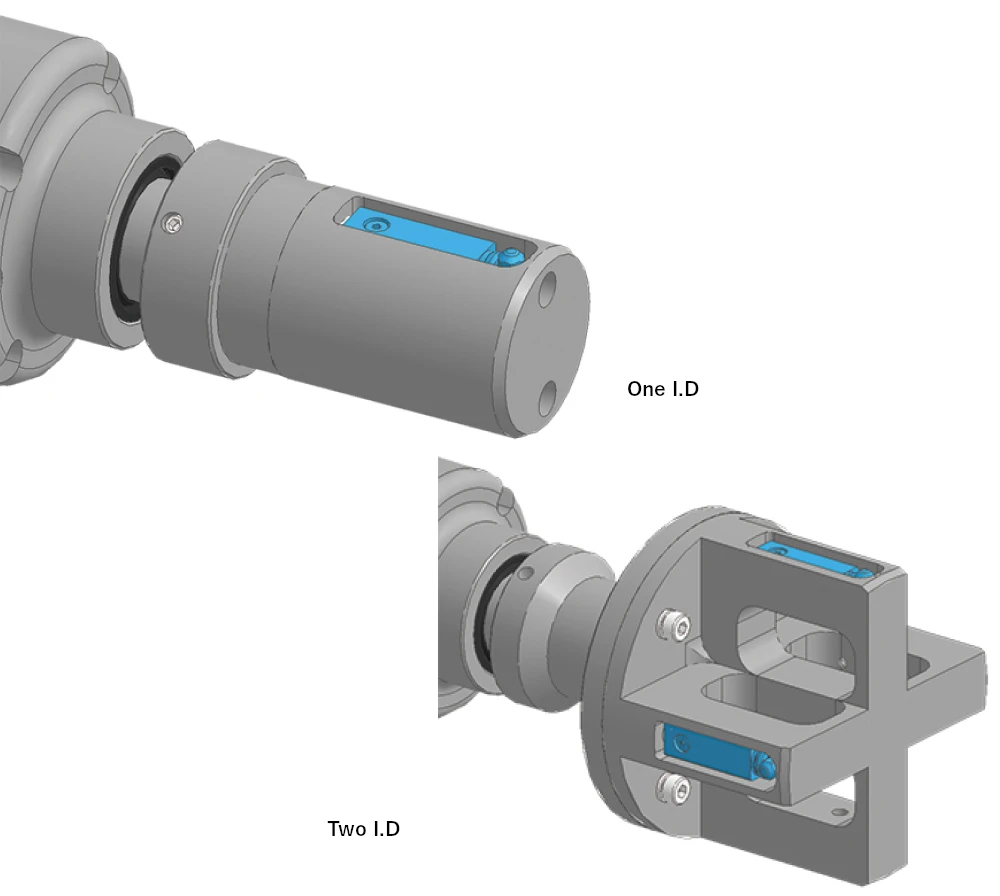

I.D Measurement Application
Maximum 16 wireless bore gauges can be installed to a machining center.
Measuring head is customized to meet to measuring application.

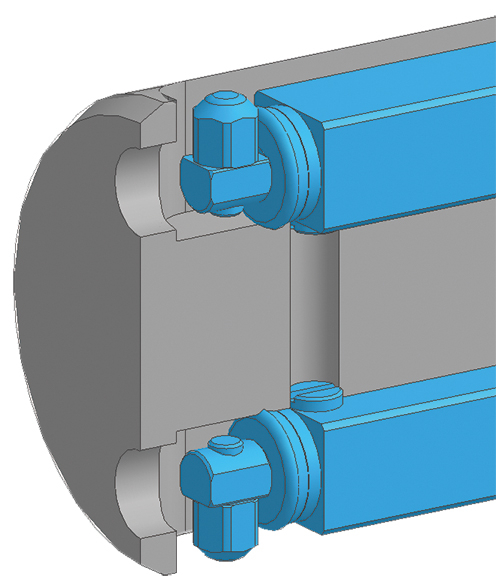

High precision hole measurement
Small type digital measuring head is installed.
Bore gauge head is simple and it has a high freedom of shape with high precision measuring.
(repeatability 1.0 μm (4 σ) or less)

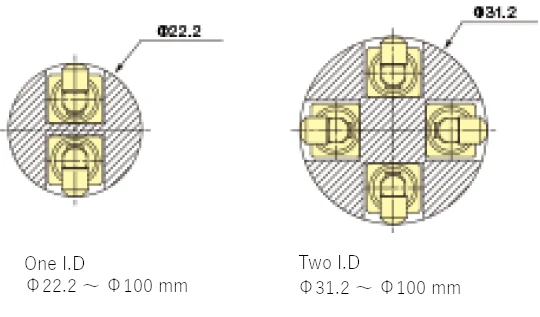

Available diameter and depth

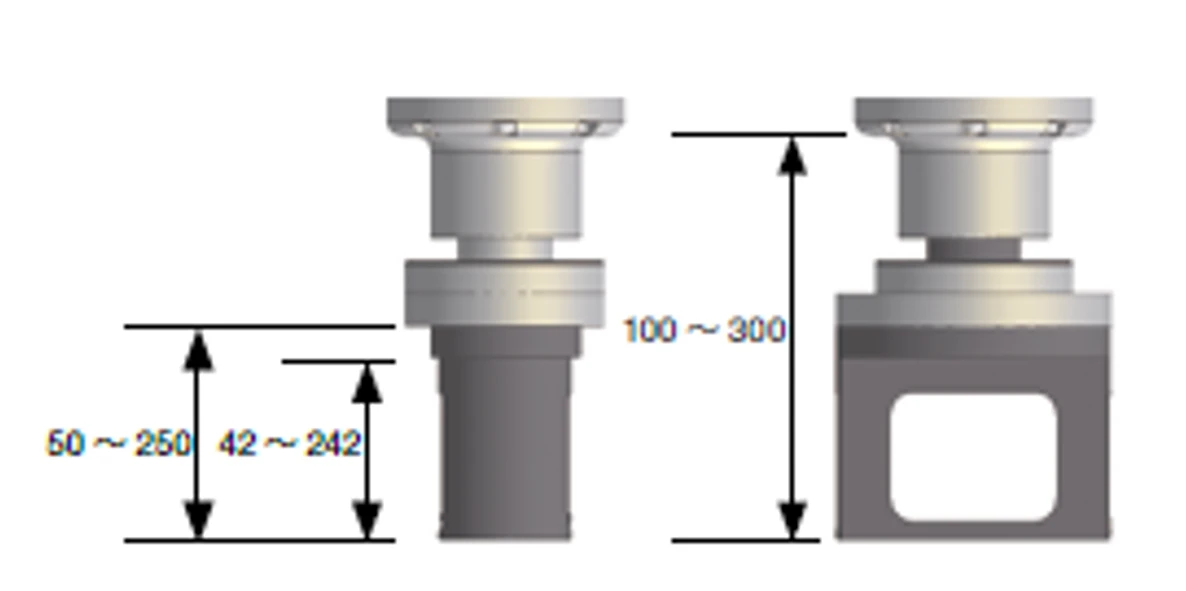

Maximum measurement depth
Measurement diameter less than Φ40 mm: 42 - 242 mm
More than Φ40 mm
Less than 52.5 mm: 50 - 250 mm
More than Φ52.5 mm: 100 - 300 mm
External view

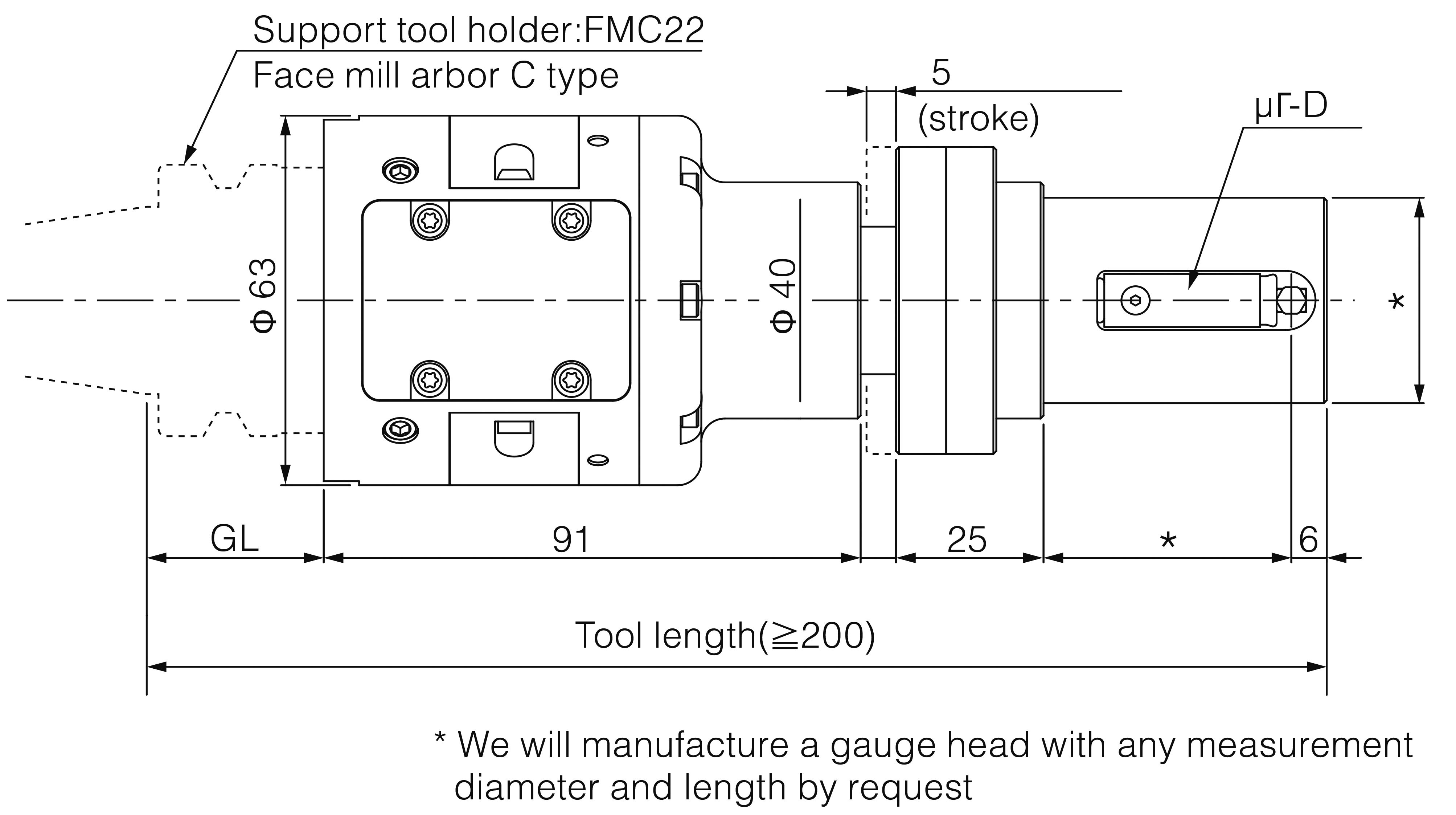

WL BORE GAUGE (Wireless bore gauge)

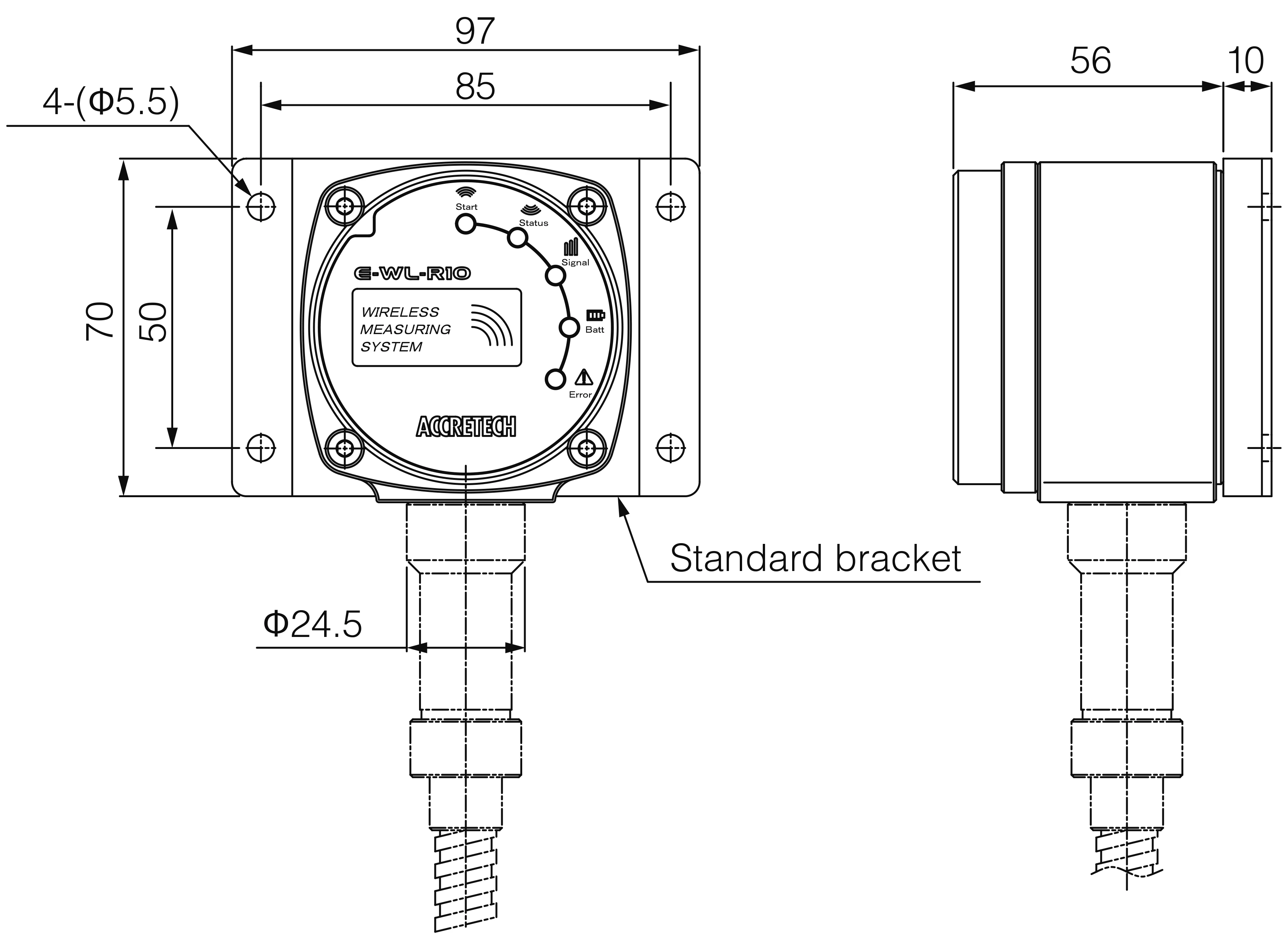

WL RECEIVER (Receiver unit)

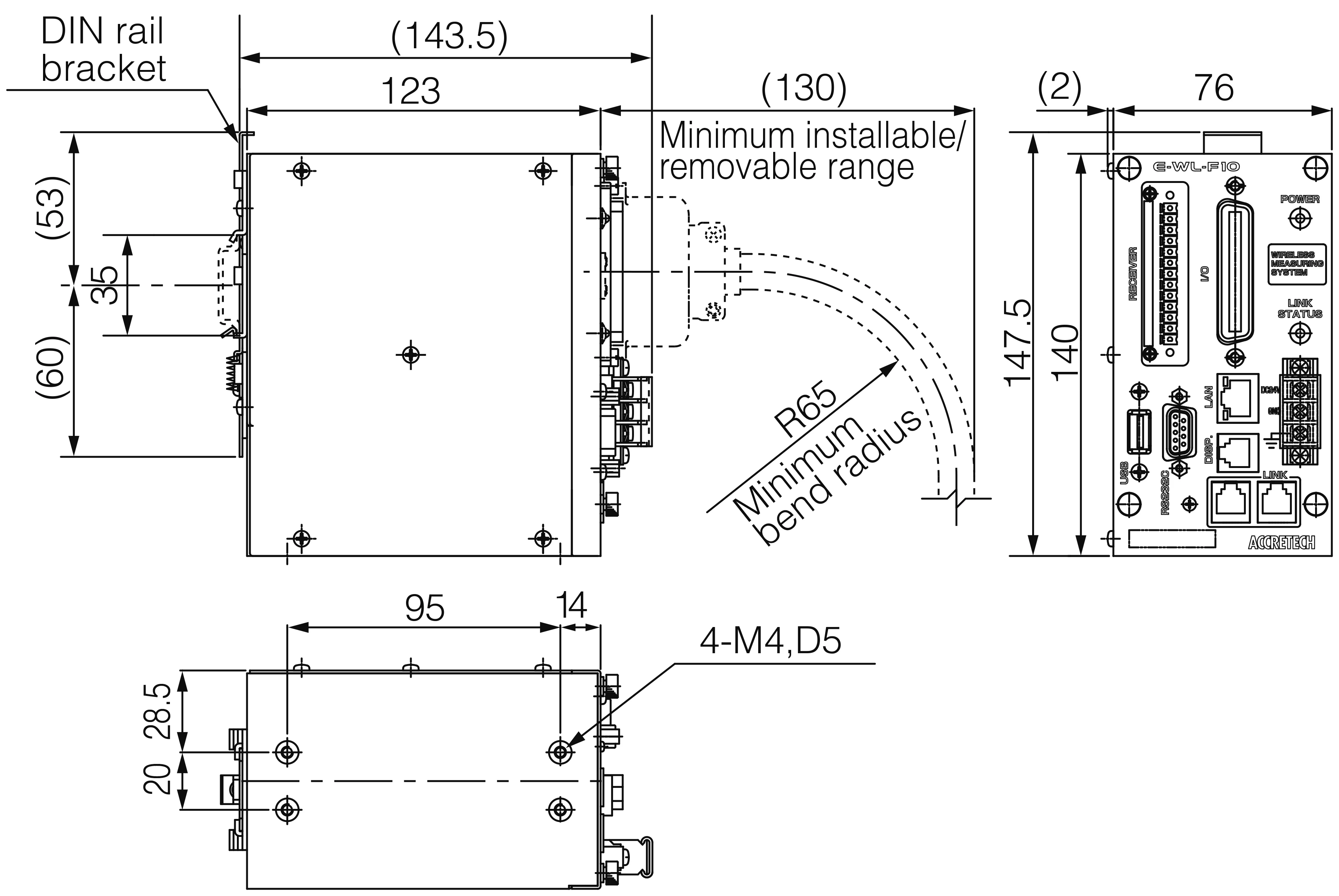

WL INTERFACE (Interface unit)

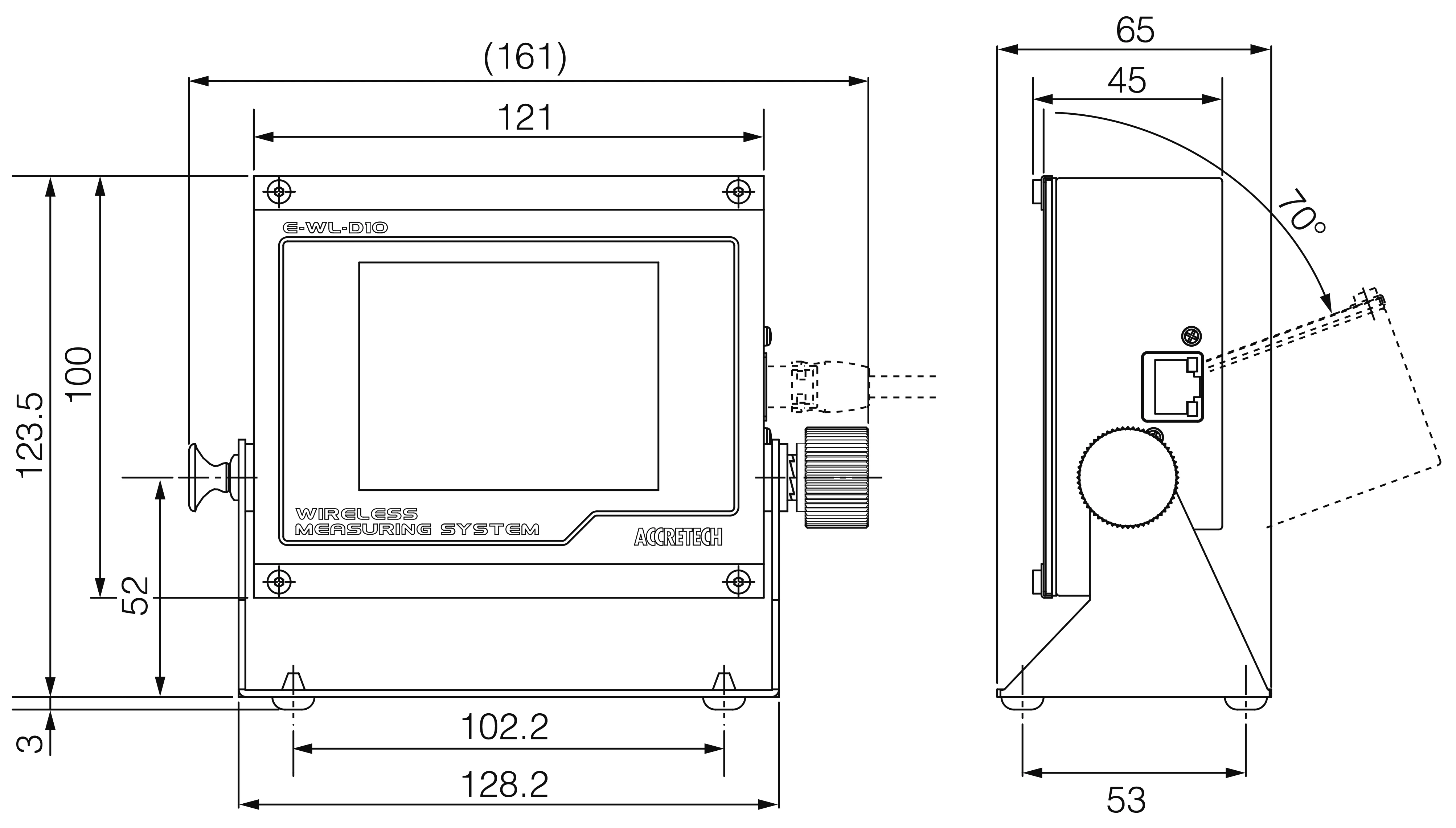

WL DISPLAY (Display unit)
Specifications
✓: Available -: Not available
| Basic specifications | ||||
| Product name | Interface Unit | Receiver Unit | Display Unit | Wireless Bore Gauge |
| Model number(representative) | E-WL-F10 | E-WL-R10 | E-WL-D10 | BG-302/BG-304 |
| Display range of measurement data | - | - | ±999999.9 μm | - |
| Resolution | - | - | 0.1 μm | - |
| Display unit | - | - | μm, mm | - |
| Human interface | - | - | 3.5-inch TFT color LCD touch panel |
- |
| Sampling speed | 10 ms | - | - | 13 ms |
| Data update time | 10 ms | - | 100 ms | - |
| IP code | IP Non-compliant | IP67 compliant | IP Non-compliant | IP67 compliant |
| Ambient usage temperature /Humidity | 0 to 50°C 10 to 90% R.H., no condensation |
0 to 50°C 10 to 90% R.H., no condensation |
0 to 50°C 10 to 90% R.H., no condensation |
0 to 50°C 10 to 90% R.H., no condensation |
| Vibration resistance/Shock resistance | JIS C 60068-2-6 compliance | JIS C 60068-2-6 compliance | JIS C 60068-2-6 compliance | JIS C 60068-2-6 compliance |
| CE mark | ✓ | ✓ | ✓ | ✓ |
| Outer dimensions (W) x (D) x (H) / Weight | 76 × 123 × 140 mm/1.1 kg | 68.5 × 56 × 70.5 mm/0.6 kg | 121 × 45 × 100 mm/0.8 kg | Custom |
| Power source / Power consumption | DC24 V/24 W | Supplied from the interface unit | DC24 V/6 W | Two AA-size alkaline batteries or two AA-size lithium thionyl chloride batteries |
| Accessories | NA | Standard bracket | Stand | NA |
Options
| Options | ||
| Product code | Product name | Remarks |
| 0924314 | I/O unit set | Extension I/O unit set (includes I/O cable, 50 PIN 6 m, V9 connection cable 0.5 m, power cable 6 m, DIN rail mounting bracket) |
| 0924315 | CC-Link unit set | Extension I/O unit set (includes CC-Link cable 1 m, V9 connection cable 0.5 m, power cable 6 m, DIN rail mounting bracket) |
| 0924316 | PROFIBUS unit set | Extension I/O unit set (includes PROFIBUS cable 1 m, V9 connection cable 0.5 m, power cable 6 m, DIN rail mounting bracket) |
| 4220574 | USB memory 4 GB | |
| 0935415 | RS-232C cable 3 m | |
| 0935416 | RS-232C cable 5 m | |
| 0935417 | RS-232C cable 15 m | |
| 0924213 | Receiver cable 3 m | |
| 0924214 | Receiver cable 6 m | |
| 0924215 | Receiver cable 10 m | |
| 0924211 | Receiver cable 15 m | |
| 0924212 | Receiver cable 25 m | |
| 0924218 | Casing tube 2 m | |
| 0924217 | Casing tube 5 m | |
| 0924216 | Casing tube 10 m | |
| 0924311 | I/O cable 36 PIN 6 m | |
| 0341202 | I/O cable 50 PIN 6 m | |
| 0937061 | CC-Link cable 1 m | |
| 0937062 | CC-Link cable special length | |
| 0937080 | PROFIBUS cable 1 m | |
| 0937081 | PROFIBUS cable custom length | |
| 0937063 | V9 connection cable 0.5 m | |
| 0937064 | V9 connection cable 3 m | |
| 0937065 | V9 connection cable 6 m | |
| 0937066 | V9 connection cable 10 m | |
| 0930154 | Termination cable | |
| 9037060 | Power cable 6 m | |
| 0937069 | Power cable 10 m | |
| 0937081 | Power cable custom length | |
