LVDT gauge
Inner Surface Grinder Measuring Head
Rear Fork Gauge RF-10
Features
Automatic Zero Set for Different Diameters within 10 mm
The changing of setup for diameters within 10 mm is fully automatic, and zero set is possible with only a signal input to the control unit. In processing lines with many types of workpieces, for example, this gage can significantly shorten the setup time.
Automatic Retract Adjustment
The retract stroke is selectable between 0.1 mm and 0.3 mm. In this way, the operation can be performed without interference, even when the clearance from the grinding wheel is small.
Compatible with up to 40 Sizes
By pre-registering the workpieces, 40 different types of workpieces can be automatically measured.

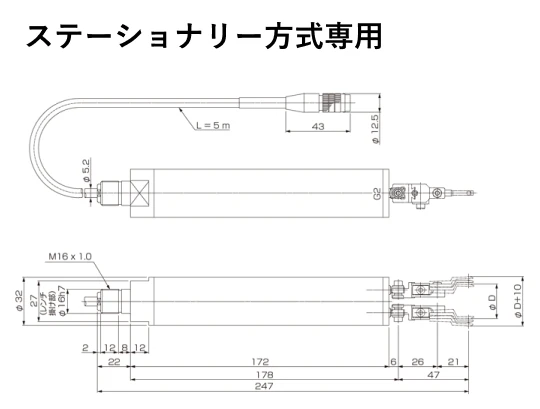

External view
Specifications
| Basic specifications | |
| Product name | RF-10 |
| Model | RF-10 |
| Product code | 0960040 |
| Repeatability | ≦0.5 ㎛/4 σ |
| Measuring force | 0.9 ±0.2 N (zero point) |
| Linearity | Over 0.1% and less than or equal to 0.5% F.S. |
| Measuring range | ±700 ㎛ |
| Pre travel (one side) | 2.6 ～ 2.8 mm |
| Measuring diameter | ー |
| Workpiece profile | Continuous surface |
| Retract type | Electric type |
| Retract amount (one side) | 0.1 to 0.3 mm |
| Retract mechanism | From the control unit |
| Standard finger length | 47 mm |
| Cable thickness and length | φ 5.2×5 m + 3 m |
| Weight (main unit) | Approx. 0.7 kg |
| Remarks | No. of outputs 2+ D-sub9pin for retract Stationary only |
