Precision Measuring Instrument

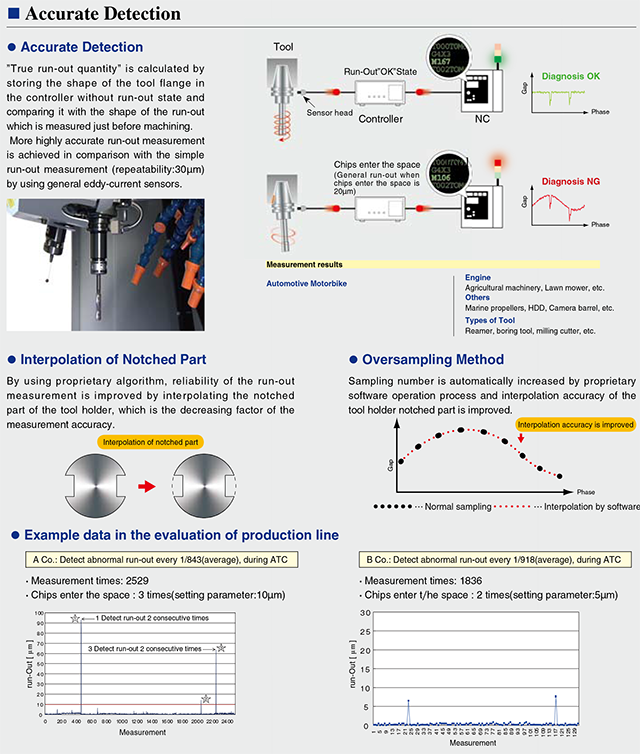

Feature
External View
Specifications
| Model | Controller | AT50369 |
|---|---|---|
| Φ5 sensor | E-DT-ED02A-234 | |
| Tool registrations | 21max | |
| Performance | Display unit | 0.5μm |
| Repeatability | 3μ or less *Using our master tool holder(BT40) | |
| Tool rotation speed | 600rot/min | |
| Cycle time | 0.3s (without retries) | |
| Usage environment | temperature | 0 to 40 |
| Vibration resistance | 3.66G max. (x,y,z-axis directions) | |
| Shock resistance | sensor head: 50G max. (x,y,z-axis directions) | |
| Waterproof standard | IP67(sensor head) *Do not expose controller to water, oil or other liquids. | |
| Power requirements | Rated voltage | DC24±V10% |
| Rated power | 14W | |
