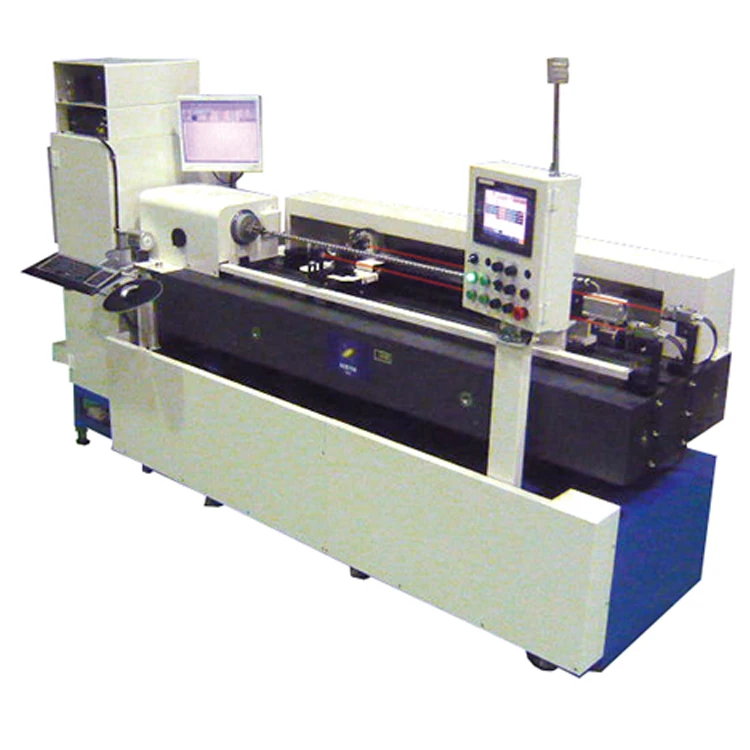

Ball screw / lead measuring machine

This machine measures the automatically the lead of ball screw by the use of a laser interference instrument DISTAX..
Changing the measurement jig makes “screw axis single measurement” and “nut assembly measurement” possible.
