Features
No need for hydraulic pump
Small grinders without hydraulic mechanism are also fully supported with the six models of air driving unit lined up.
High Durability
The durability has been dramatically improved by designing the appropriate seal and bearing materials, keeping pace with the recent coolant (oil-based, water-soluble) diversification.
Lineup
Compact type (Single piston) and high thrust type (Double pistons). Each type gives a 50 mm or 80 mm stroke choice. The compact type gives a further choice of right or left specification.

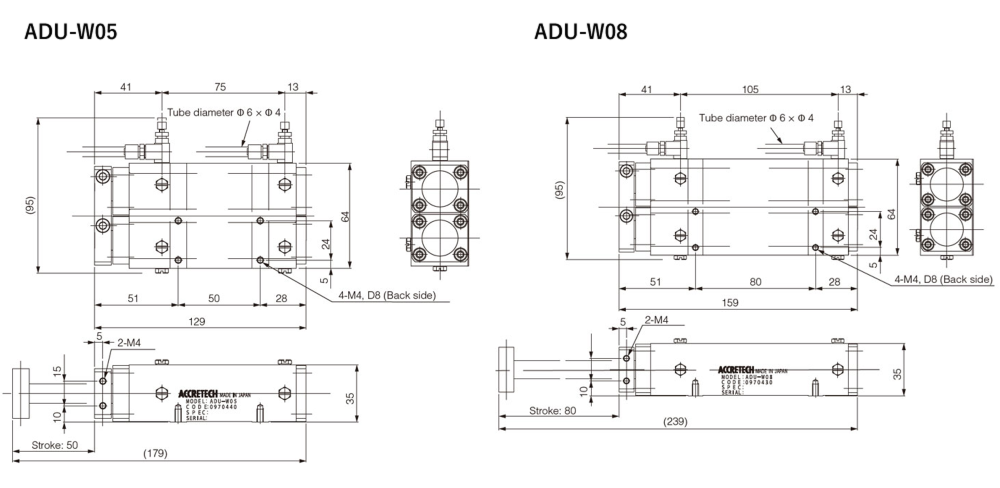

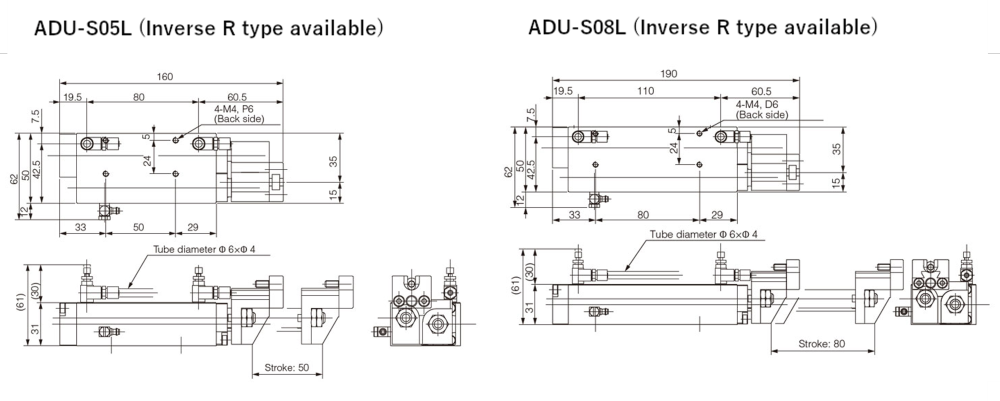

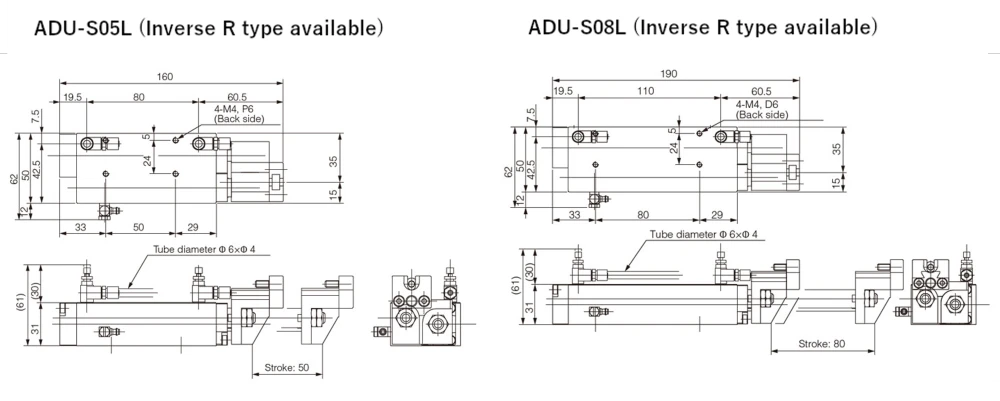

External view
Specifications
| Basic specifications | ||||||
| Product name | Air Drive Units | |||||
| Model | ADU-W08 | ADU-W05 | ADU-S08L | ADU-S08R | ADU-S05L | ADU-S05R |
| Product code | 0970430 | 0970440 | 0970470 | 0970480 | 0970450 | 0970460 |
| Stroke | 80 mm | 50 mm | 80 mm | 50 mm | ||
| Conveyable weight | 5.5 kg | 4.5 kg | ||||
| Features | Double piston (high thrust) | Single piston (compact) | ||||
| Position relative to the head | Low | Below (and left) | Below (and right) | Below (and left) | Below (and right) | |
| Driving air-pressure | 0.3 to 0.5 MPa | |||||
| Connecting air tube diameter | φ 6 x φ 4 | |||||
| Weight | Approx. 1.2 kg | Approx. 1 kg | Approx. 1.5 kg | Approx. 1.2 kg | ||
