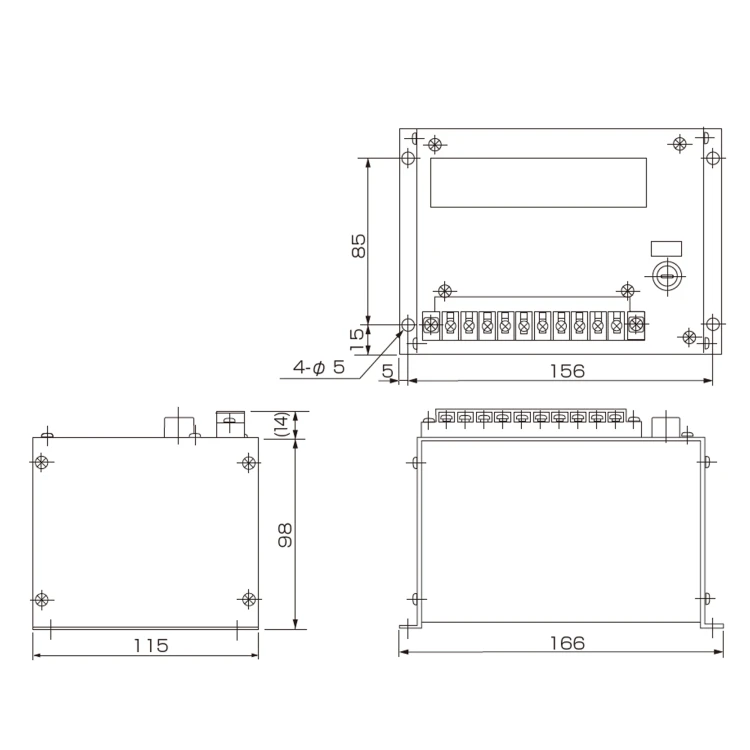

Retract Power Unit
This power unit is for the electric retract mechanisms on the PULCOM Σ, and is built into the machine tool panel.
Configurations
PULCOM Σ E-TS-112 □ B
PULCOM Σ E-TS-114 □ B
| Basic specifications | ||
| Product code | Model | Power source |
| 0923151 | A735581 | 100 V |
| 0923152 | A735582 | 110 V |
| 0923153 | A735583 | 120 V |
| 0923154 | A735584 | 200 V |
| 0923155 | A735585 | 220 V |
| 0923156 | A735586 | 240 V |
NT Adapter
Device that convert the old type head / control unit between new type head / control unit.

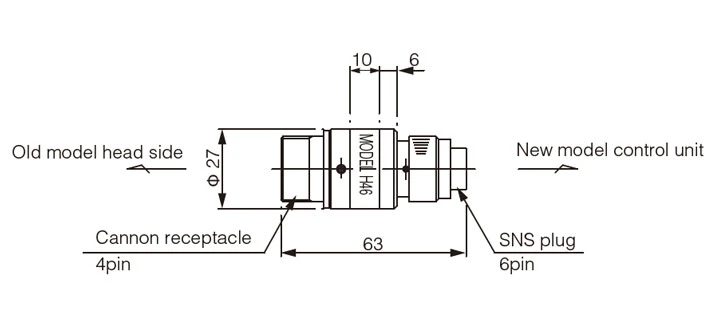

Adapter：H46

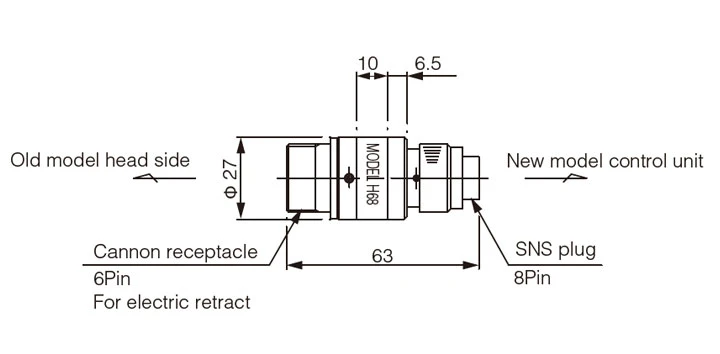

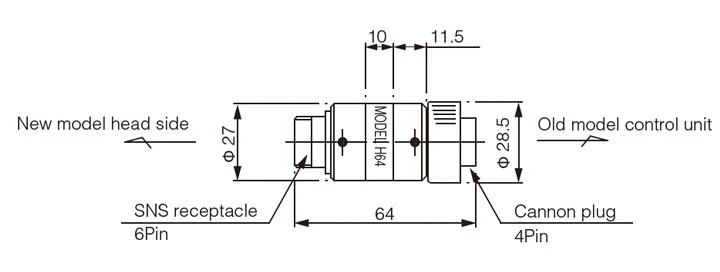

Adapter：H64
Adapter：H68

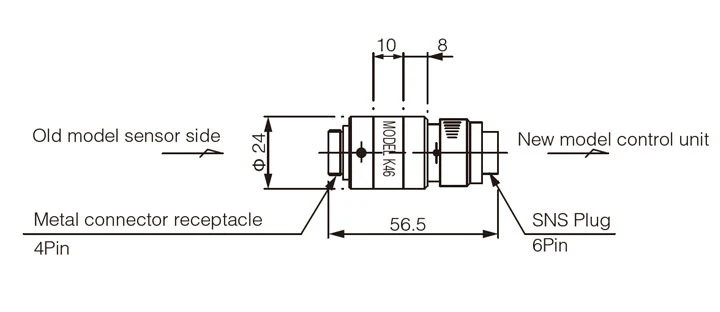

Adapter：K46

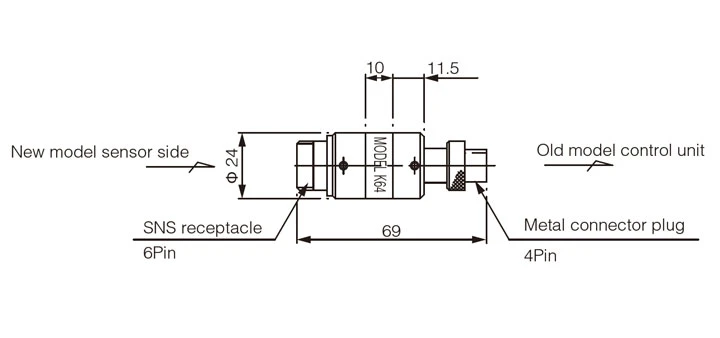

Adapter：K64

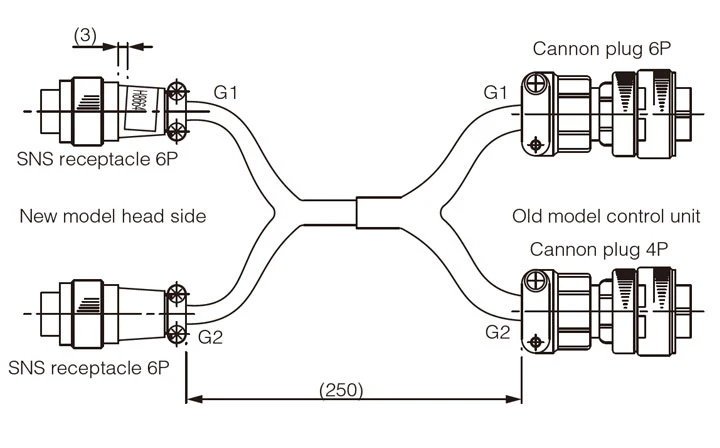

Adapter：H8864
| Basic specifications | |||
| Product code | Product name | Model | Remarks |
| 0944831 | NT Adapter | A061201(H46) | Canon plug ⇔ SNS connector conversion (bridge → NT controller) |
| 0944832 | NT Adapter | A061200(H64) | Canon plug ⇔ SNS connector conversion (NT → bridge controller) |
| 0944834 | NT Adapter | A06715(H8664) | SNS connector ⇔ Canon plug conversion (NT measuring unit → bridge controller), for electronic retract mechanism Σ |
| 0944835 | NT Adapter | A061714(H68) | Canon plug ⇔ SNS connector conversion (bridge measuring unit → NT controller), for electronic retract mechanism Σ |
| 0944836 | NT Adapter | A062343(K46) | Metal connector ⇔ SNS converter conversion |
| 0944837 | NT Adapter | A062344(K64) | SNS converter ⇔ Metal connector conversion |
Regulator/Valve Set

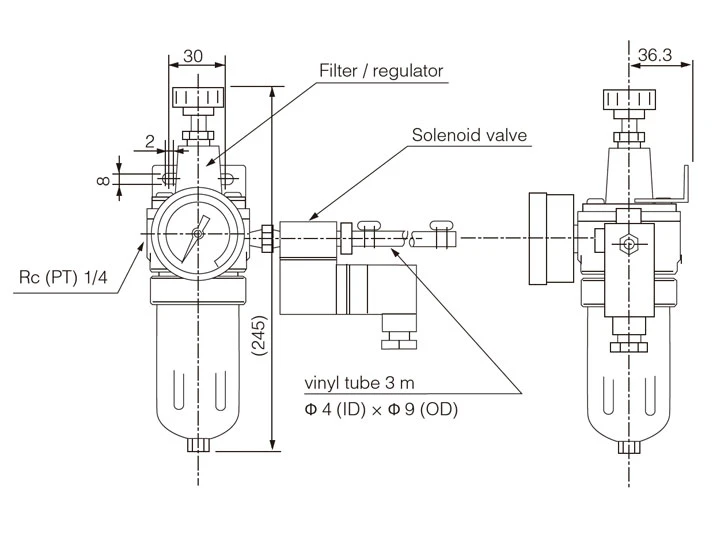

This unit provides the air for the air retract mechanisms on the PULCOM Σ, MINI Σ-Ⅱ and PULCOM Γ. With the standard type, the air supply is normally output, and is interrupted when the solenoid valve goes On.
| Basic specifications | ||
| Product code | Model | Power source |
| 0950290 | A601216 | 100 V |
| 0950296 | A601320 | 200 V |
Relay Cable
Extension cable from measuring head to control unit.

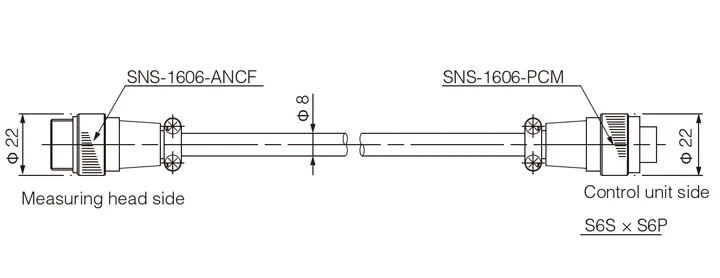

A061732

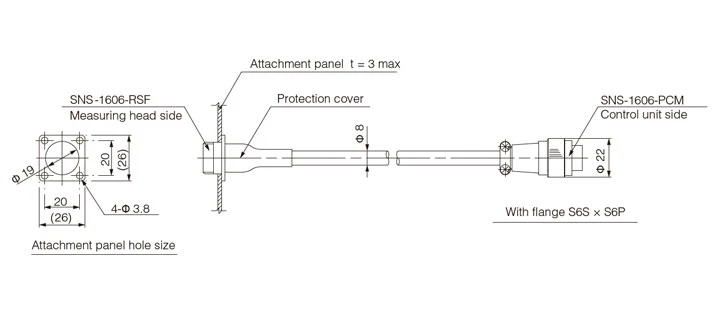

A061733

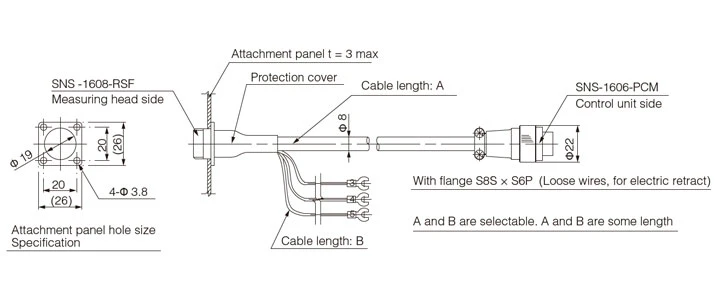

A061735
| Basic specifications | |||
| Product code | Product name | Model | Remarks |
| 0944720 | Relay cable 1 m | A061732 | Suitable for SNS connector 6S x SNS connector 6P, SNS connector 6P gauge |
| 0944721 | Relay cable 2 m | A061732 | Suitable for SNS connector 6S x SNS connector 6P, SNS connector 6P gauge |
| 0944722 | Relay cable 3 m | A061732 | Suitable for SNS connector 6S x SNS connector 6P, SNS connector 6P gauge |
| 0944724 | Relay cable 6 m | A061732 | Suitable for SNS connector 6S x SNS connector 6P, SNS connector 6P gauge |
| 0944727 | Relay cable 1 m | A061733 | With flange, SNS connector 6S x SNS connector 6P |
| 0944728 | Relay cable 2 m | A061733 | With flange, SNS connector 6S x SNS connector 6P |
| 0944729 | Relay cable 3 m | A061733 | With flange, SNS connector 6S x SNS connector 6P |
| 0944731 | Relay cable 6 m | A061733 | With flange, SNS connector 6S x SNS connector 6P |
| 0944742 | Relay cable 2 m | A061735 | With flange, SNS connector 8S x SNS connector 6P, for use with an electric retract with loose wires A: 2 m, B: 3 m |
| 0944743 | Relay cable 3 m | A061735 | With flange, SNS connector 8S x SNS connector 6P, for use with an electric retract with loose wires A: 3 m, B: 3 m |
