Features External view Specifications

Features

Standard Model for On-Machine Measurement

This model can handle a variety of use cases, such as for outer diameter, inner diameter, width, and spline measurements. Also, the model is ideal for harsh environments, such as inline measurement on grinders.

High Precision Mechanism

The internal mechanism is free from any parts that slide or wear, which maintains high precision over a long period.

High Durability and High Rigidit

The adoption of our original L-shaped leave-spring fulcrum provides superior precision, durability, and rigidity.

Outstanding Reliability and Maintainability

As a precision measuring instrument operating in the harshest environments, the PULCOM Σ’s delivery record speaks for itself. In addition, a cable separation type is also available for convenient maintenance when installing in a machine.

External view

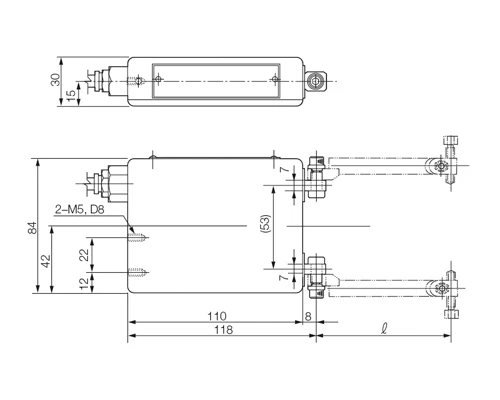

E-TS-1071B, 1072B, 1075B, 1076B
E-TS-1111B, 1112B, 1115B, 1116B
E-TS-1121B, 1122B, 1125B, 1126B
E-TS-1151B, 1152B, 1155B, 1156B

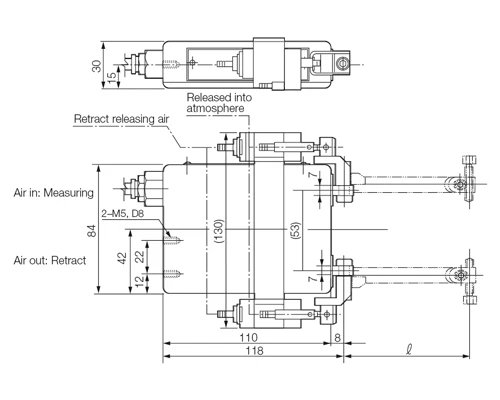

E-TS-1091B, 1092B, 1095B, 1096B
E-TS-1161B, 1162B, 1165B, 1166B
E-TS-1191B, 1192B, 1195B, 1196B

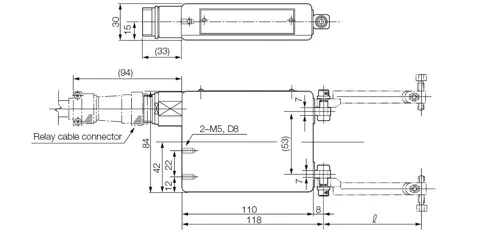

E-TS-1□□□B-T (For details, please make Inquires to our sales office.)

For each model we offer "T" type whose measuring head and cable can be separated, making maintenance extremely easy. Only the measuring head can be removed, so maintenance/repair is even with the cable drawn into the machine.

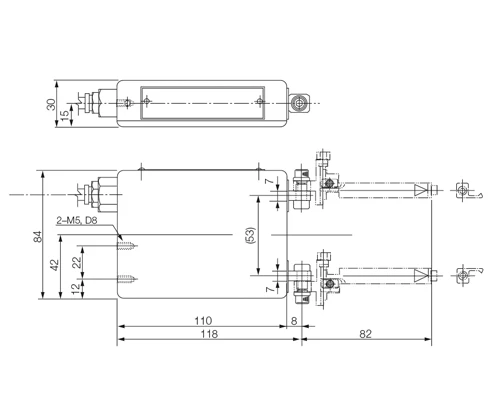

E-TS-1132B, 1136B

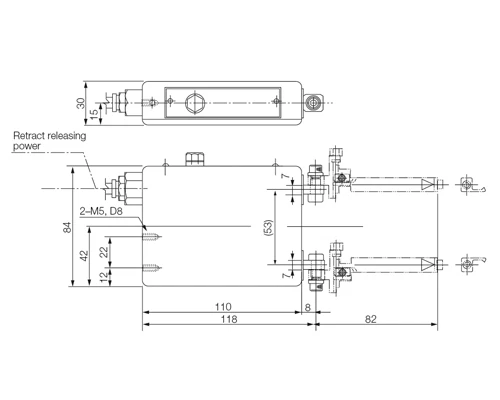

E-TS-1142B, 1146B

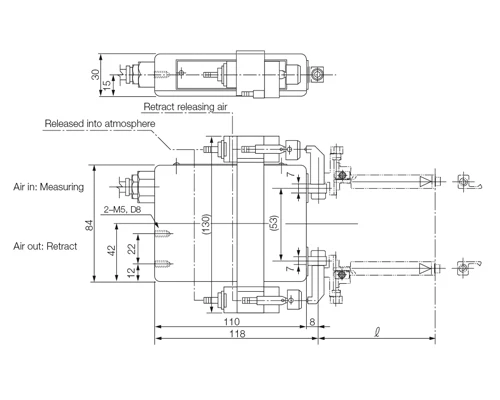

E-TS-1082B, 1086B
E-TS-1182B, 1186B

Workpiece type	Measurement diameter	Driving stroke	Workpiece groove width	Corresponding diagrams
Continuous surfac	≦φ 80	50 mm	ー	A654715-D001
		80 mm		A654716-D001
	≦φ 105			A654717-D001
		120 mm		A654718-D001
Discontinuous surface	≦φ 80	50 mm	≦ 2 mm	A654719-D001
		80 mm		A654720-D001
	≦φ 105			A654721-D001
			≦ 6 mm	A654721-D002
		120 mm	≦ 2 mm	A654722-D001
			≦ 6 mm	A654722-D002

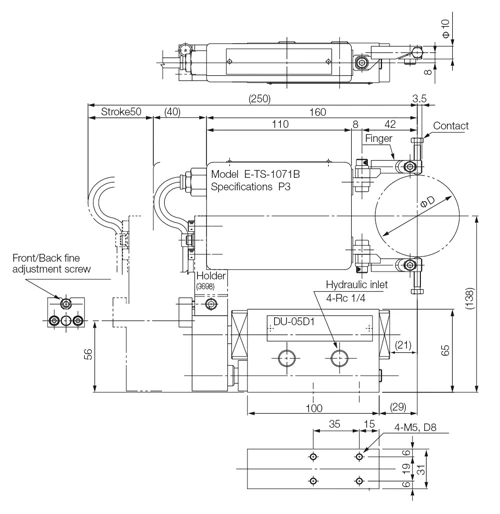

A654715-D001

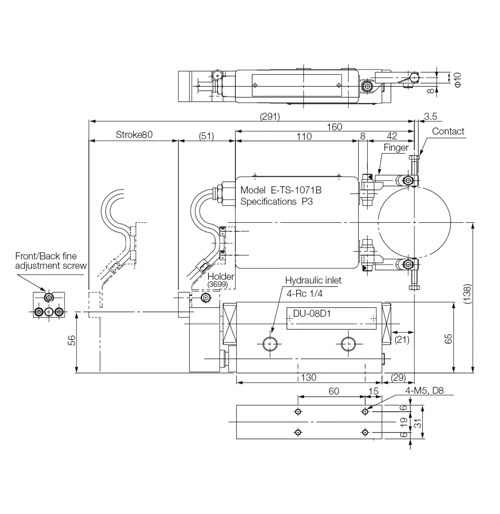

A654716-D001

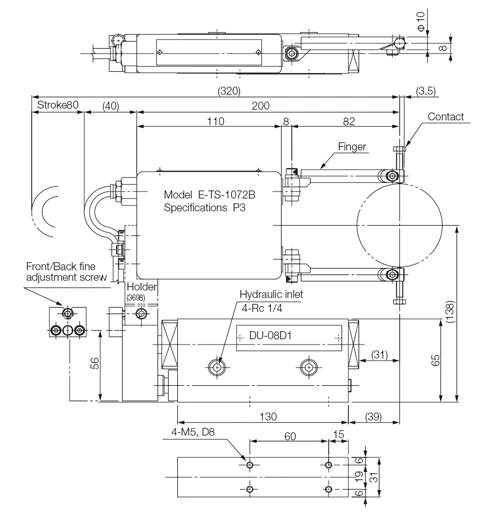

A654717-D001

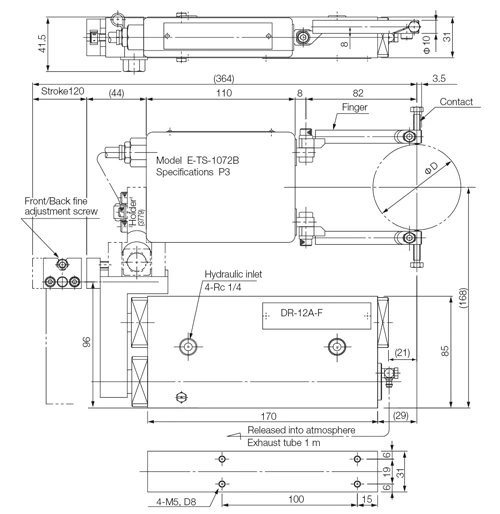

A654718-D001

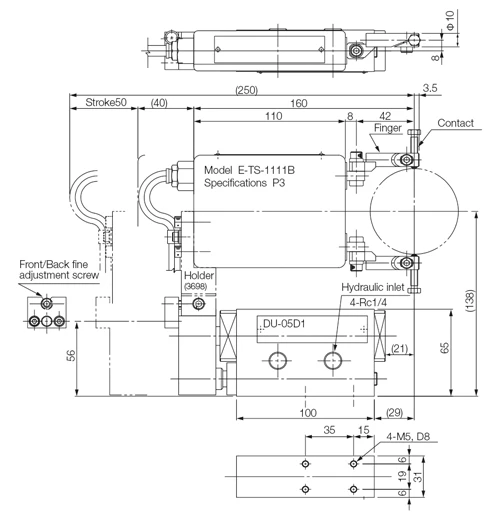

A654719-D001

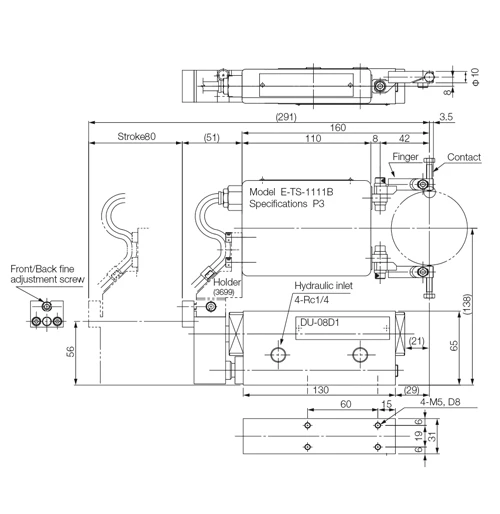

A654720-D001

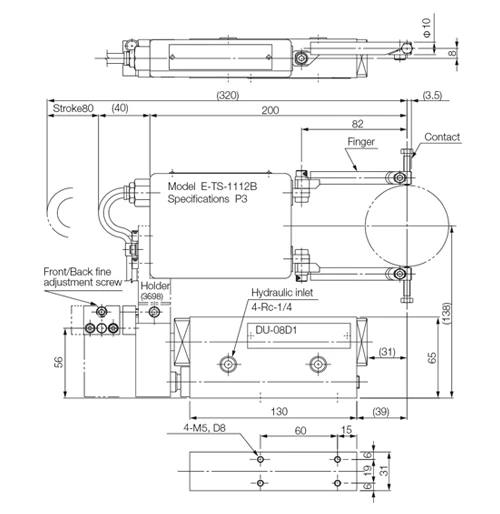

A654721-D001

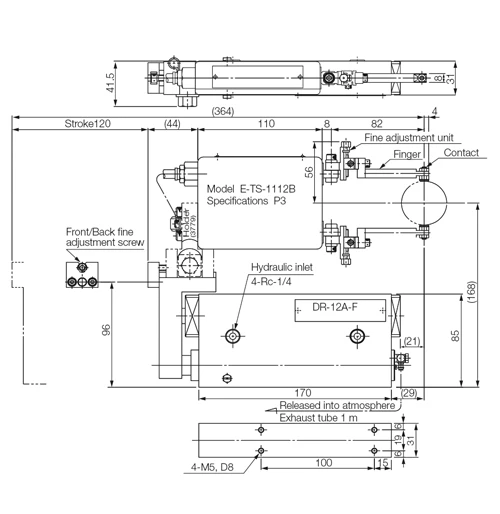

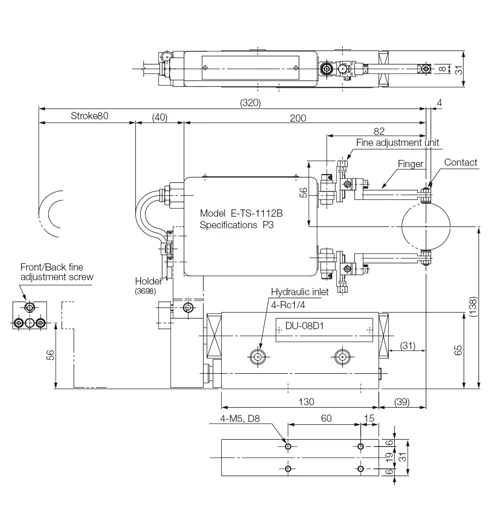

A654721-D002

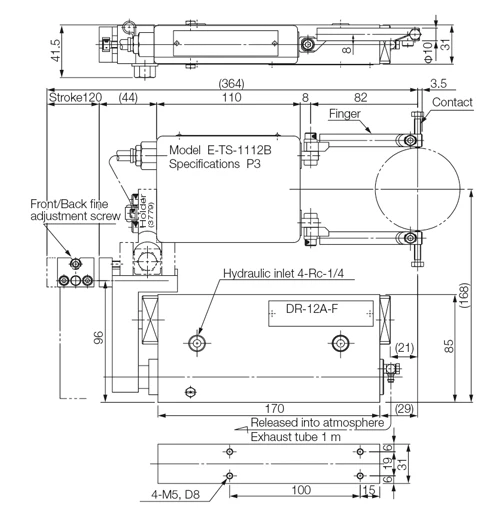

A654722-D001

A654722-D002

Specifications

Basic specifications
Product name	PULCOM Σ
Model	E-TS-1071B-P3	E-TS-1071B-P6	E-TS-1072B-P3	E-TS-1072B-P6	E-TS-1075B-P3	E-TS-1075B-P6	E-TS-1076B-P3	E-TS-1076B-P6
Product code	0947001	0947002	0947003	0947004	0947005	0947006	0947007	0947008
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm		0.19 to 0.24 mm		0.12 to 0.15 mm		0.19 to 0.24 mm
Standard measuring diameter	φ 8 to φ 65 mm
Optional measuring diameter	φ 5 to φ 140 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	ー
Retract amount (one side)	ー
Retract mechanism (retract air source)	ー
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	1
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD
Model	E-TS-1151B-P3	E-TS-1151B-P6	E-TS-1152B-P3	E-TS-1152B-P6	E-TS-1155B-P3	E-TS-1155B-P6	E-TS-1156B-P3	E-TS-1156B-P6
Product code	0947021	0947022	0947023	0947024	0947025	0947026	0947027	0947028
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm		0.19 to 0.24 mm		0.12 to 0.15 mm		0.19 to 0.24 mm
Standard measuring diameter	φ 8 to φ 65 mm
Optional measuring diameter	φ 5 to φ 140 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	ー
Retract amount (one side)	ー
Retract mechanism (retract air source)	ー
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD-S
Model	E-TS-1111B-P3	E-TS-1111B-P6	E-TS-1112B-P3	E-TS-1112B-P6	E-TS-1115B-P3	E-TS-1115B-P6	E-TS-1116B-P3	E-TS-1116B-P6
Product code	0947011	0947012	0947013	0947014	0947015	0947016	0947017	0947018
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm
Standard measuring diameter	φ 8 to φ 65 mm
Optional measuring diameter	φ 5 to φ 140 mm
Workpiece profile	Discontinuous surface
Max. workpiece circumferential speed	80 m/min		50 m/min		80 m/min		50 m/min
Retract type	ー
Retract amount (one side)	ー
Retract mechanism (retract air source)	ー
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD-R
Model	E-TS-1121B-P3	E-TS-1121B-P6	E-TS-1122B-P3	E-TS-1122B-P6	E-TS-1125B-P3	E-TS-1125B-P6	E-TS-1126B-P3	E-TS-1126B-P6
Product code	0947401	0947402	0947403	0947404	0947405	0947406	0947407	0947408
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm		0.19 to 0.24 mm		0.12 to 0.15 mm		0.19 to 0.24 mm
Standard measuring diameter	φ 8 to φ 65 mm (post process: φ 1 to φ 65 mm)
Optional measuring diameter	φ 5 to φ 140 mm (post process: φ 1 to φ 140 mm)
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Electric type
Retract amount (one side)	＜ 2.8 mm		＜ 4.5 mm		＜ 2.8 mm		＜ 4.5 mm
Retract mechanism (retract air source)	A retract source unit is required
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD-AR
Model	E-TS-1161B-P3	E-TS-1161B-P6	E-TS-1162B-P3	E-TS-1162B-P6	E-TS-1165B-P3	E-TS-1165B-P6	E-TS-1166B-P3	E-TS-1166B-P6
Product code	0947031	0947032	0947033	0947034	0947035	0947036	0947037	0947038
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm		0.19 to 0.24 mm		0.12 to 0.15 mm		0.19 to 0.24 mm
Standard measuring diameter	φ 8 to φ 65 mm (post process: φ 1 to φ 65 mm)
Optional measuring diameter	φ 5 to φ 140 mm (post process: φ 1 to φ 140 mm)
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Electric type
Retract amount (one side)	＜ 2.8 mm		＜ 4.5 mm		＜ 2.8 mm		＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD-AR
Model	E-TS-1091B-P3	E-TS-1091B-P6	E-TS-1092B-P3	E-TS-1092B-P6	E-TS-1095B-P3	E-TS-1095B-P6	E-TS-1096B-P3	E-TS-1096B-P6
Product code	0947601	0947602	0947603	0947604	0947605	0947606	0947607	0947608
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm		0.19 to 0.24 mm		0.12 to 0.15 mm		0.19 to 0.24 mm
Standard measuring diameter	φ 8 to φ 65 mm (post process: φ 1 to φ 65 mm)
Optional measuring diameter	φ 5 to φ 140 mm (post process: φ 1 to φ 140 mm)
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 2.8 mm		＜ 4.5 mm		＜ 2.8 mm		＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	1
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-OD-SAR
Model	E-TS-1191B-P3	E-TS-1191B-P6	E-TS-1192B-P3	E-TS-1192B-P6	E-TS-1195B-P3	E-TS-1195B-P6	E-TS-1196B-P3	E-TS-1196B-P6
Product code	0947041	0947042	0947043	0947044	0947045	0947046	0947047	0947048
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm
Standard measuring diameter	φ 8 to φ 65 mm (post process: φ 1 to φ 65 mm)
Optional measuring diameter	φ 5 to φ 140 mm (post process: φ 1 to φ 140 mm)
Workpiece profile	Discontinuous surface
Max. workpiece circumferential speed	80 m/min		50 m/min		80 m/min		50 m/min
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 2.8 mm		＜ 4.5 mm		＜ 2.8 mm		＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	42 mm		82 mm		42 mm		82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-ID
Model	E-TS-1132B-P3	E-TS-1132B-P6	E-TS-1132B-N3	E-TS-1132B-N6	E-TS-1136B-P3	E-TS-1136B-P6	E-TS-1136B-N3	E-TS-1136B-N6
Product code	0940713	0940714	0940715	0940716	0940717	0940718	0940719	0940720
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.12 to 0.15 mm
Measuring diameter	φ 3 to φ 120 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	ー
Retract amount (one side)	ー
Retract mechanism (retract air source)	ー
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-ID-R
Model	E-TS-1142B-P3	E-TS-1142B-P6	E-TS-1142B-N3	E-TS-1142B-N6	E-TS-1146B-P3	E-TS-1146B-P6	E-TS-1146B-N3	E-TS-1146B-N6
Product code	0940703	0940704	0940705	0940706	0940707	0940708	0940709	0940710
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.5 to 1.0 mm
Measuring diameter	φ 3 to φ 120 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Electric type
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	A retract source unit is required
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-ID-AR
Model	E-TS-1182B-P3	E-TS-1182B-P6	E-TS-1182B-N3	E-TS-1182B-N6	E-TS-1186B-P3	E-TS-1186B-P6	E-TS-1186B-N3	E-TS-1186B-N6
Product code	0940733	0940734	0940736	0940735	0940737	0940738	0940739	0940740
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.19 to 0.24 mm
Measuring diameter	φ 3 to φ 120 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-ID-AR
Model	E-TS-1082B-P3	E-TS-1082B-P6	E-TS-1082B-N3	E-TS-1082B-N6	E-TS-1086B-P3	E-TS-1086B-P6	E-TS-1086B-N3	E-TS-1086B-N6
Product code	0940803	0940804	0940793	0940794	0940807	0940808	0940810	0940811
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (one side)	0.19 to 0.24 mm
Measuring diameter	φ 3 to φ 120 mm
Workpiece profile	Continuous surface
Max. workpiece circumferential speed	ー
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	1
Remarks	Installation on the vertical plane				Installation on the horizontal plane

Basic Specifications
Product name	PULCOM Σ-ID-SAR
Model	E-TS-1202B-P3	E-TS-1202B-P6	E-TS-1202B-N3	E-TS-1202B-N6	E-TS-1206B-P3	E-TS-1206B-P6	E-TS-1206B-N3	E-TS-1206B-N6
Product code	0940743	0940744	0940745	0940746	0940747	0940748	0940749	0940750
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N
Linearity	0.5% or less
Measuring range	-200 to +500 μm
Pre travel (One side)	0.12 to 0.15 mm
Measuring diameter	φ 3 to φ 120 mm
Workpiece profile	Discontinuous surface
Max. workpiece circumferential speed	50 m/min
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2
Remarks	Installation on the vertical plane				Installation on the horizontal plane
