Electric Micrometer Control unit
DELCOM 400
Features
Optimally designed to built-in to control panels and production facilities
Compact type allowing installation on DIN rails.
DC 24 V single power supply
Includes functions for sizing devices (in-process)
Real-time Specifications (1 ms sampling) Smoothing, LPF, retract confirmation, zero shift function, and sizing meter output
Automatic measuring (Full control from an external device)
3 analog channel inputs
Easy PLC connectivity (Both plus common, minus common connectivity)
Gauge unit with highly flexible measuring station
5 rank judgment output
2 judgment timings (Y00,Y11)
6 types of basic gauge calculations (G1, G2, G1 ± G2, (G1 ± G2)/2)

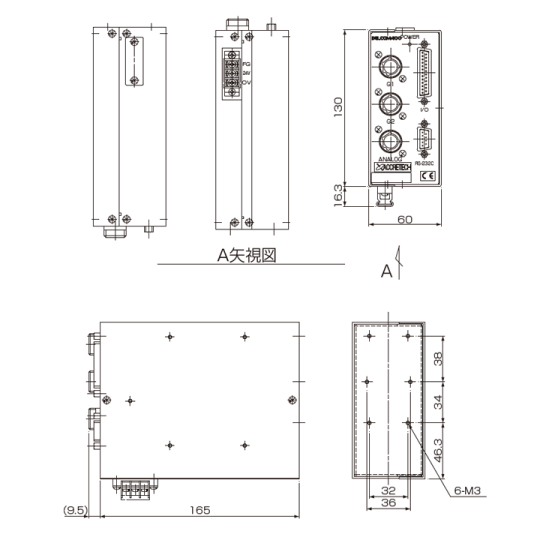

External view
Specifications
✓：Available ー：Not available
| Basic specifications | |
| Product name | DELCOM 400 |
| Model number(representative) | E-DL-400 |
| Applications | In-process/Post-process |
| Measuring range | ±999.9㎛ |
| Resolution | 0.1 ㎛ |
| Unit | ㎛ |
| Sampling speed | 1 ms |
| Data update time | - |
| IP code | - |
| Ambient usage temperature /Humidity | 0 to 40°C/10 to 90% R.H. (no condensation) |
| Vibration resistance/Shock resistance | - |
| CE mark | ✓ |
| Outer dimensions (W) × (D) × (H) / weight | 60 × 165 × 130 mm/1.0 kg |
| Power source / power consumption | DC24 V 20 W |
| Accessories | I/O connector (D-Sub 25-pin), ferrite core for I/O cable, parameter setup application (CD-ROM) |
