High Precision Digital Measurement Instrument Controller

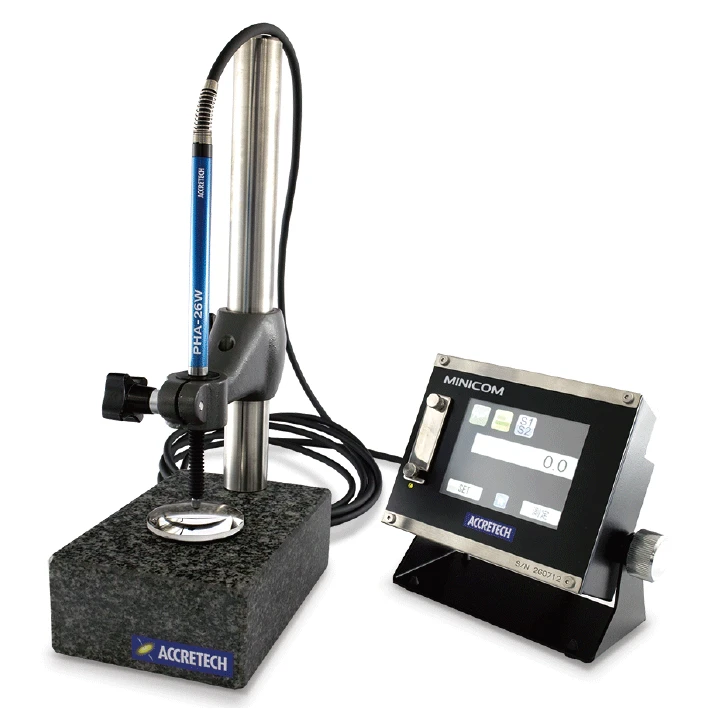

MINICOM-XD
Features
Application
With the multi-functional MINICOM-XD and the high precision PHA, a broad range of applications are supported.
Example of thickness measurement using PHA
Example of thickness measurement using PHA
Easy to Save Data
The measurement conditions and the measurement data can be saved on a USB flash drive.
Support Multi Languages
Operators can easily use the system in their local language.
The Japanese, English, Chinese, Korean, Thai, Indonesian, and Spanish languages are supported.

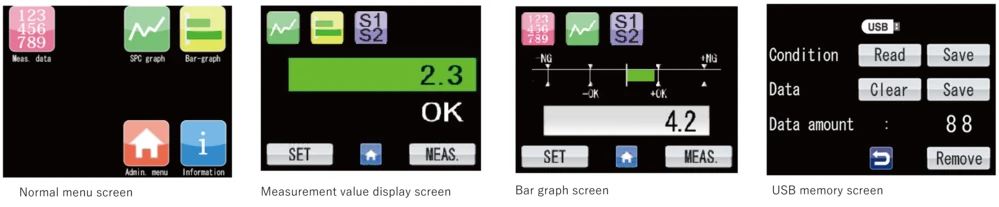

Screen Layout for Easy Operations

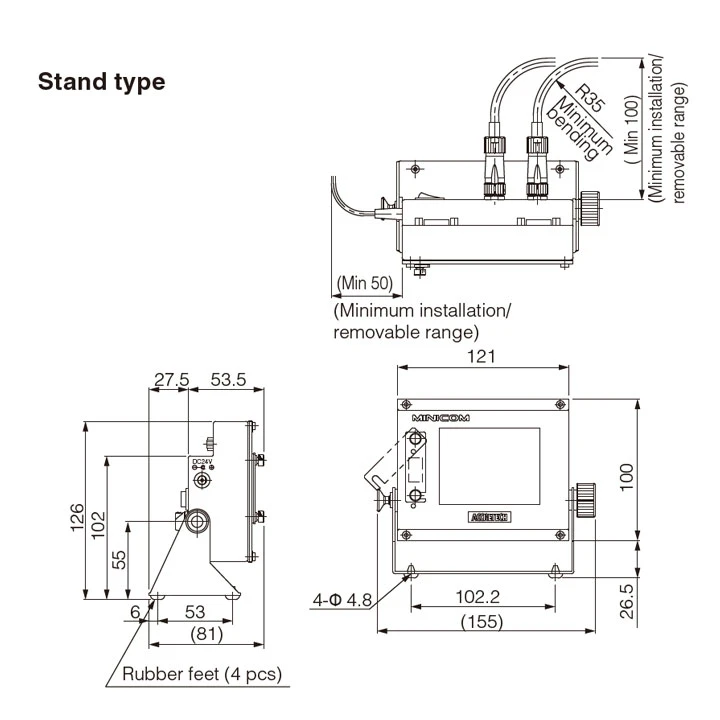

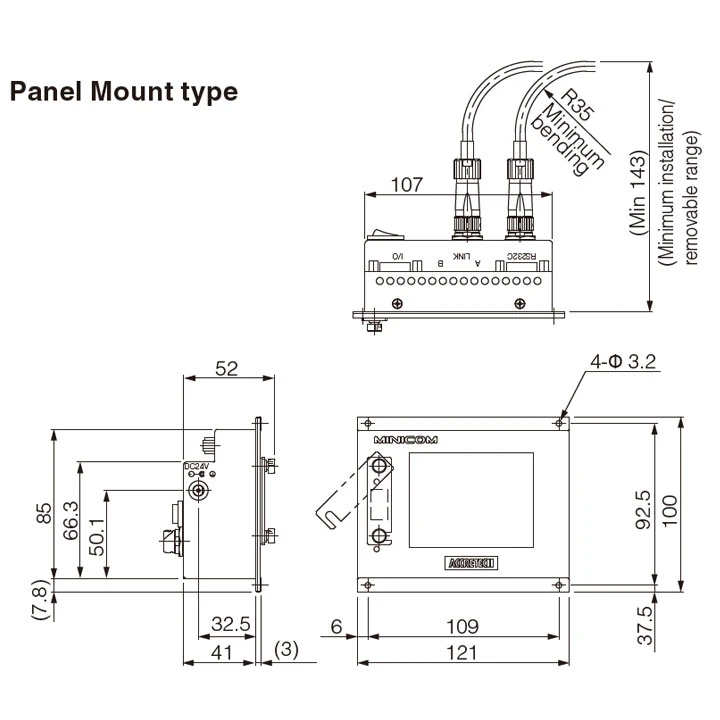

External view
Specifications
| Basic specifications | |
| Product name | MINICOM-XD |
| Representative model | MXD6xx |
| Application | Post-process |
| Display method | 3.5-inch TFT color LCD |
| Display items | Measurements, Item list, Settings |
| Measurement value display range | Select from ±999999.9 μm and ±9999999 μm |
| Resolution | 1.0 ㎛、0.1 ㎛ |
| Display unit | ㎛、mm |
| Human interface | Resistive touch panel |
| Sampling speed | 10 ms |
| Data update time | 10 ms |
| Display separation/panel-type model | - |
| IP code | Front surface panel: IP55 conformant Rear surface panel: IP non-conformant |
| Ambient usage temperature/humidity | 0℃ to 50℃ 10 to 90% R.H. (no condensation) |
| Vibration resistance/shock resistance | JIS C 1003 compliance |
| CE mark | - |
| Outer dimensions (W) × (D) × (H)/weight | 121 × 63.5 × 100 mm/0.48 kg |
| Power supply /Power consumption | DC24 V/6 W |
| Accessories | - |
Options
| Options | ||
| Product code | Product name | Remarks |
| 0935612 | MXD I/O FCTN | I/O function options |
| 0935613 | MXD RS232C FCTN |
RS-232 function options |
| 0935610 | STAND 120*100 |
MINICOM-XD stand |
| 0935419 | I/O CABLE 3 m | I/O optional cable High density D-SUB 15-pin 3 m |
| 0935420 | I/O CABLE 6 m | I/O optional cable High density D-SUB 15-pin 6 m |
| 0935415 | RS-232C CABLE |
RS-232C optional cable 3 m |
| 0935416 | RS-232C CABLE |
RS-232C optional cable 5 m |
| 0935417 | RS-232C CABLE |
RS-232C optional cable 15 m |
| 0935411 | 24 V05 A ACPWR |
24 V 0.5 A common AC adapter With a plug for the Japan market |
| 0935460 | 24 V05 A ACPWR |
24 V 0.5 A common AC adapter With a plug for the North American market (UL, CSA standards) |
| 0935461 | 24 V05 A ACPWR |
24 V 0.5 A common AC adapter With a plug for the EU market (CE standard) |
| 0935462 | 24 V05 A ACPWR |
24 V 0.5 A common AC adapter With a plug for the South Korean market |
| 0935463 | 24 V05 A ACPWR |
24 V 0.5 A common AC adapter With a plug for the Chinese market (CCC standard) |
| 4220574 | USB MEMORY 4 GB |
Dedicated USB flash memory 4 GB |
| 0937500 | DataLink X | DataLink software |
