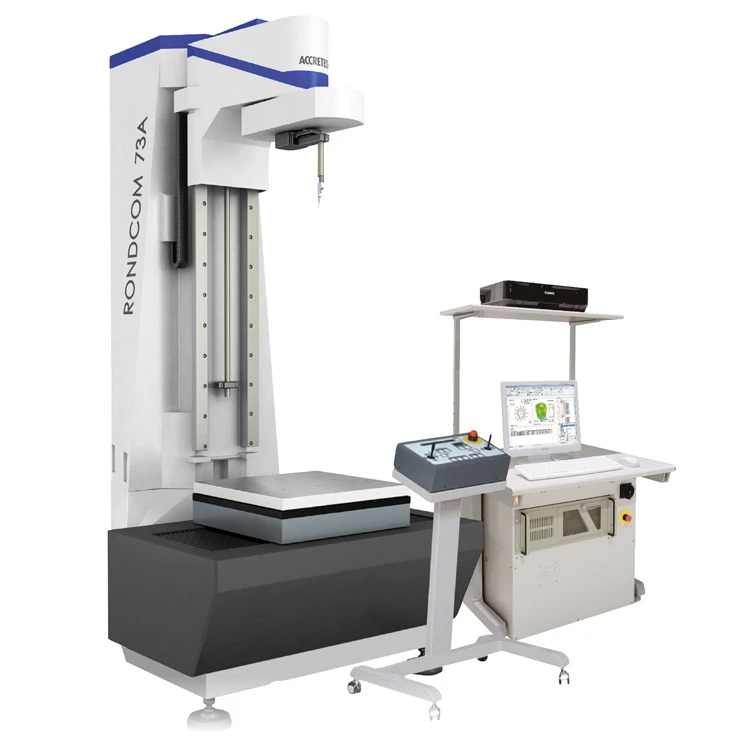

World standard instrument of highest-in-class accuracy applicable to downsized parts.

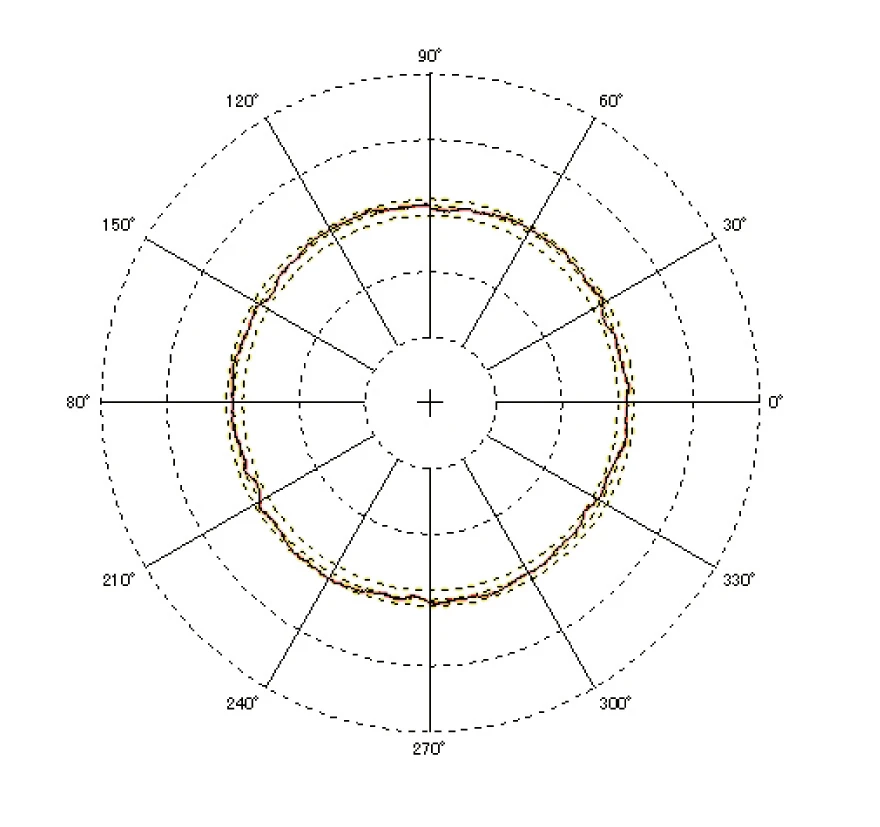

Assures rotation accuracy of 0.06 μm at rotation speed of 4/min
With a rotation speed of 4/min (twice as fast as existing instruments) and rotation accuracy guaranteed at 0.06μm (a long shaft measuring tool: 0.6μm) which is the highest in its class, the RONDCOM 73A dramatically increases measuring throughput.
High Straightness/Parallel Accuracy (Actual Values)

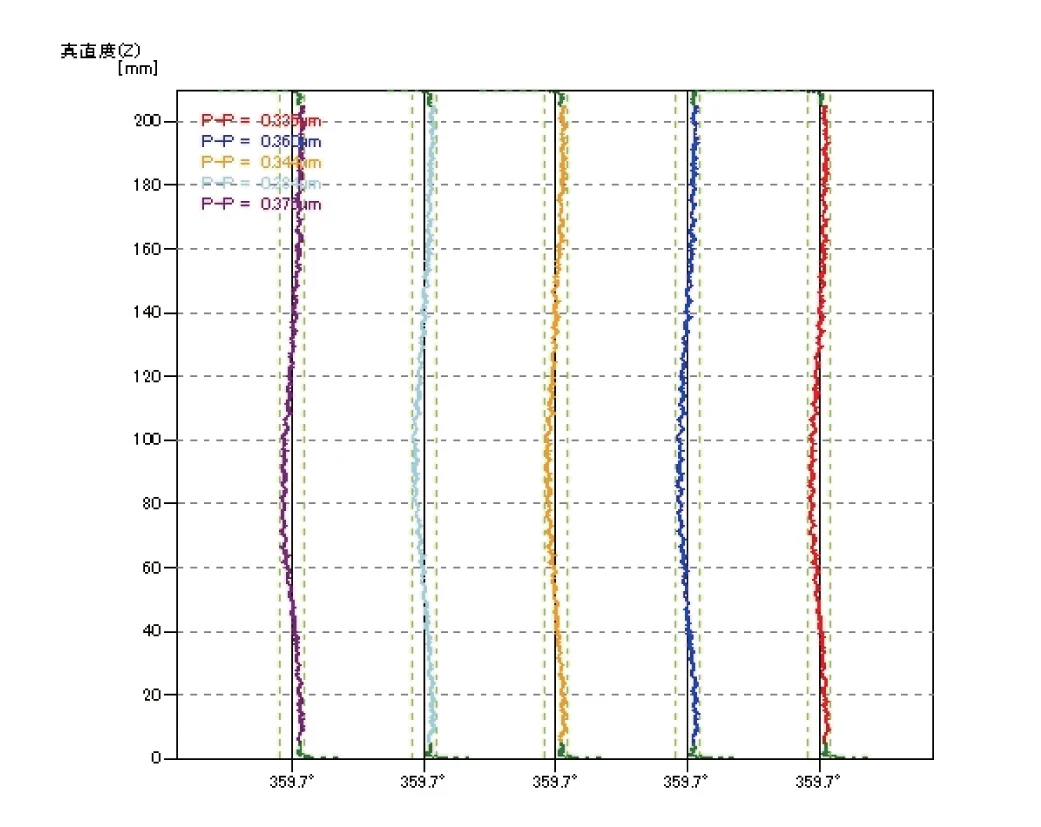

RONDCOM 73A guarantees Z-axis straightness accuracy of 0.9μm/200mm or less which is the highest in its class.
Z-axis parallelism is 0.9μm/100mm or less which is also the highest in its class.

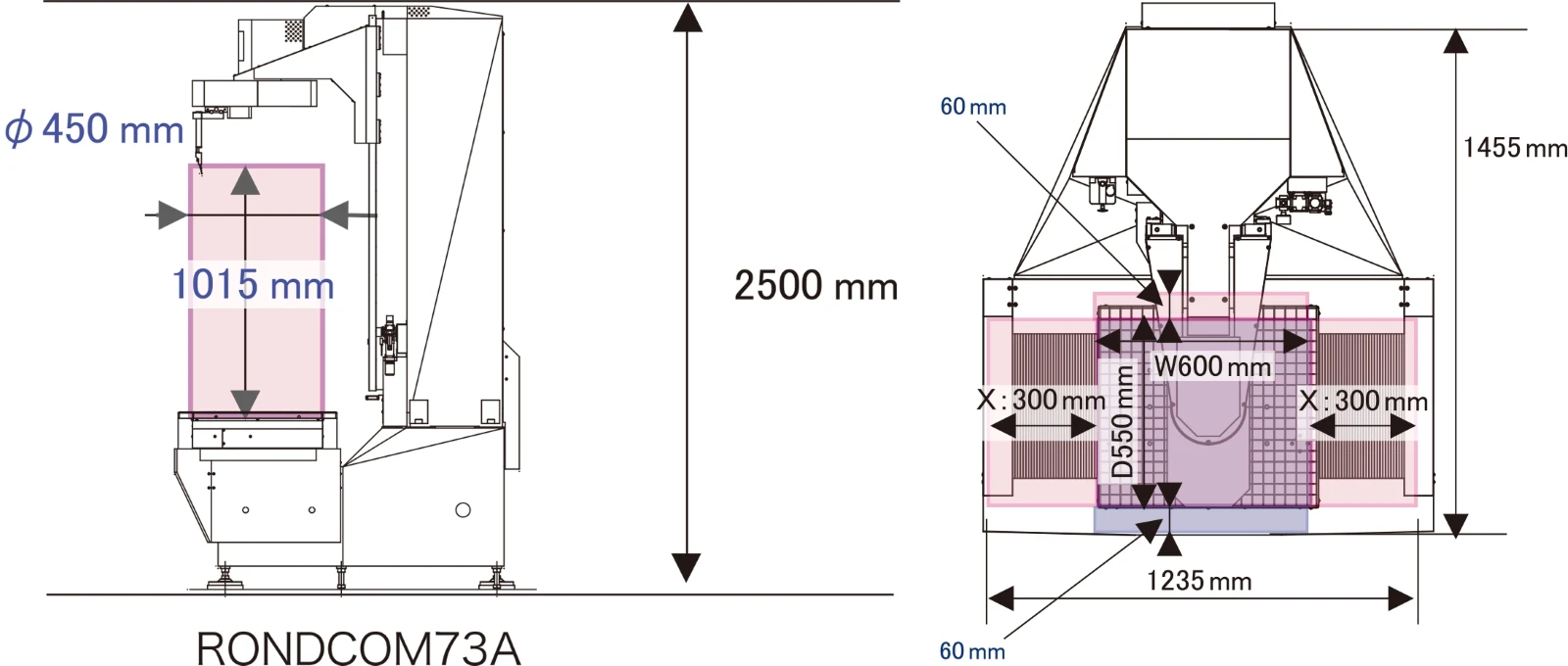

RONDCOM 73A achieved a 27% reduction of width and a 24% reduction of footprint X-axis stroke of 600 mm has been ensured while signifi cantly downsizing the instrument body. In addition, Y-axis stroke has been extended to 120 mm. Z-axis stroke of 1015 mm has been ensured although the instrument body is only 2500 mm high.
Various options to meet customer needs
Adaptive to higher accuracy requirements
Pneumatic vibration isolation stand
Adaptive to 400 kg loading
Addition of the manual feed mechanism for each axis
