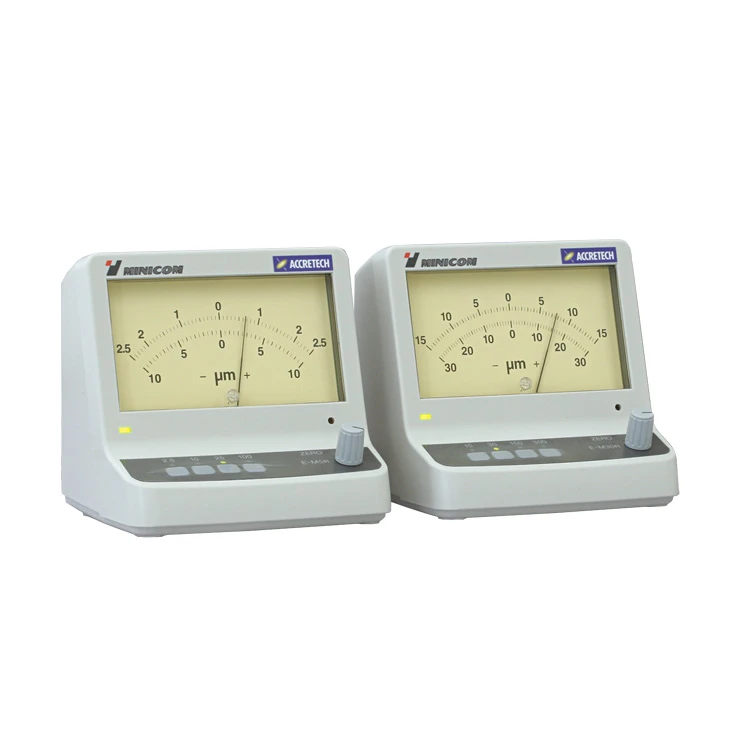

Precision Measuring Instrument
Features
Air measurements configured with A/E converter
Detector and stand set make precision measurements possible
Analog display
Minimum resolution is 0.1 µm
Analog output
Switching between 4 different ranges
Options
| Model | E-M5R | E-M30R |
|---|---|---|
| Display | Analog type | |
| Full scale type (values in parentheses indicate graduation or min. display increment) |
A: ±2.5 (0.1) µm B: ±10 (0.5) µm C: ±25 (1) µm D: ±100 (5) µm |
A: ±15 (0.5) µm B: ±30 (1) µm C: ±150 (5) µm D: ±300 (10) µm |
| Zero adjust range | 15 ±5 µm | 40 ±10 µm |
| Indicator error | A: ±5% B to D: ±1.6 % |
A to D: ±1.6% |
| Indicator stability | A: ±0.1 µm / 1h | A: ±0.5 µm / 4h |
| Analog outpu | Within ±1 V ±5% / full scale (ripple 50 mV P-P)) |
Within ±1 V ± 5% / full scale (ripple Within30 mV P-P)) |
| Digital output | – | – |
| Power source | AC 90 V to 132 V, 180 V to 250 V 50 / 60 Hz |
|
| Power consumption | 5 VA | |

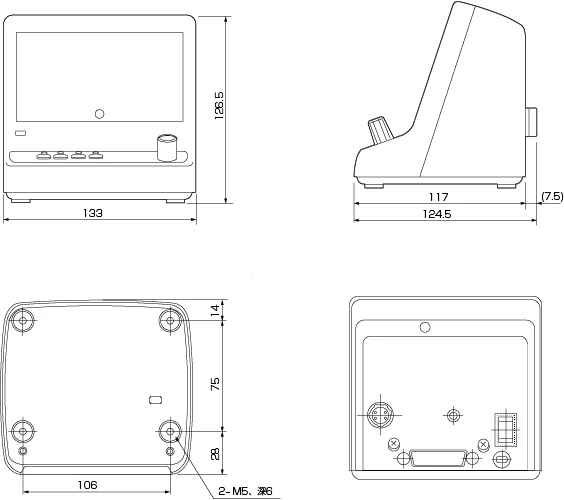

| Dimensions / weight | 133 (W) x 117 (D) x 126.5 (H) mm, 700 g | |
| CE Marking | – | |
| Accessories | 2 m power cord (directly connected), 2 m analog output c |
|
*Please specify either BCD output code or printer output code.
