Precision Measuring Instrument
Features
Various applications supported
The number of connected detectors can be selected from LVDT type (1, 2, 4 CH connection) or internal A/E 1 input.
Up to eight measuring items supported.
RS-232C function enables output of measurement data to a PC.
Successive installation of up to 5 devices allows you to expand the number of measuring items up to 40. (Optional)
Judgment output/analog I/O support (optional) also enable connection with a PLC.

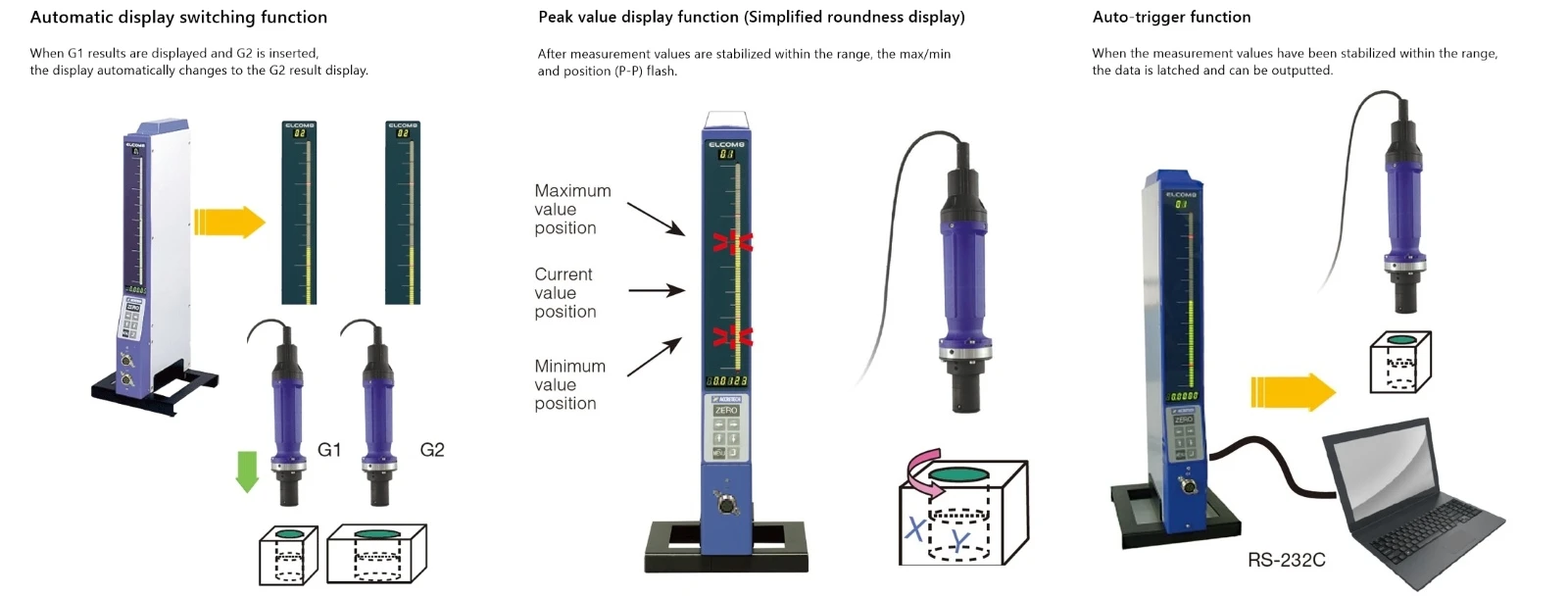

Useful functions (Standard functions)
External view
Specifications
| Basic specifications | |
| Product name | ELCOM 8 |
| Model number (representative) | - |
| Applications | Post-process |
| Display method | LED bar display |
| Display items | Measurement result/settings |
| Measurement value display range | Select from ± 4 μm, ± 8 μm, ± 20 μm, ± 40 μm, ± 80 μm, ± 200 μm, ± 400 μm When using high resolution, 1/10 resolution |
| Bar graph resolution | 81 DIV |
| Sampling speed | Sheet key |
| Sampling speed | 60 msec |
| Data update time | 60 msec |
| Display separation / panel-type model | - |
| IP code | - |
| Ambient usage temperature/humidity | 0℃ to 40℃ 10 to 90% R.H. (Without condensation) |
| Vibration resistance/shock resistance | - |
| CE mark | Compliant products available |
| Outer dimensions (W) × (D) × (H) / weight | 1 series: 160 × 193 × 467.5 mm/2.7 kg |
| Power supply / power consumption | AC85 ～ 250 V 30 VA |
| Accessories | Fuse/power cable |
Options
| Options | ||
| Product code | Product name | Remarks |
| 0999057 | Optional board | Required with each ELECOM 8 with successive installation function (calculation function with ELCOM 8) Judgment output function (open drain output, 3, 5 rank, 26 rank) Analog I/O function (Output ± 10, output ± 2.4 V, ± 10 V) Digimatic output |
| 0999103 | ELCOM 8 2 Successive specifications | 2 Set of consolidation plate for consolidated/successive installation, rod for successive installation, and power cable for successive installation |
| 0999104 | ELCOM 8 3 Successive specifications | 3 Set of consolidation plate for consolidated/successive installation, rod for successive installation, and power cable for successive installation |
| 0999105 | ELCOM 8 4 Successive specifications | 4 Set of consolidation plate for consolidated/successive installation, rod for successive installation, and power cable for successive installation |
| 0999106 | ELCOM 8 5 Successive specifications | 5 Set of consolidation plate for consolidated/successive installation, rod for successive installation, and power cable for successive installation |
| 0999088 | Link cable with ELCOM | Cable for communication for use in successive installation |
| 0999098 | Termination connectors | Termination connectors (set of 2) for communication for use in successive installation |
| 0999075 | Judgment output cable 3 m | Judgment output function cable 3 m one-sided horizontal line |
| 0999076 | Judgment output cable 6 m | Judgment output function cable 6 m one-sided horizontal line |
| 0999077 | Analog/digimatic cable 3 m | For analog I/O, digimatic output function cable 3 m one-sided horizontal line |
| 0999078 | Analog/digimatic cable 6 m | For analog I/O, digimatic output function cable 3 m one-sided horizontal line |
| 0999094 | RS-232C cable 3 m | RS-232C communication cable 3 m |
| 0999095 | RS-232C cable 5 m | RS-232C communication cable 5 m |
| 0999096 | Cable for external switch 3 m | Cable for external input (measurement, ZERO/CAL input, etc.), Switch is prepared by the user |
| 0999097 | Cable for external switch 5 m | Cable for external input (measurement, ZERO/CAL input, etc.), Switch is prepared by the user |
| 0999079 | Regulator unit | Slim-line regulator, Regulator for internal A/E specifications |
| 0999072 | Stand | Standard stand |
| 0999073 | Plate for consolidation | Plate for successive installation/consolidation |
| 0999074 | Power cable for successive installation | Power cable for successive installation/consolidation |
| 0999120 | Power cable 3 m For North America | For North America UL, CSA standardized product 3 m |
| 0999121 | Power cable 3 m For Japan | For Japan PSE standardized product/standard 3 m |
| 0999122 | Power cable 3 m For European Union | For European Union CE standardized product 3 m |
| 0999123 | Power cable 5 m For North America | For North America UL, CSA standardized product 5 m |
| 0999124 | Power cable 5 m For Japan | For Japan PSE standardized product 5 m |
| 0999126 | Power cable 2 m For South Korea | For South Korea KC standardized product 2 m |
| 0999127 | Power cable 3 m For European Union | For European Union CE standardized product 3 m one-sided clipping |
| 0999128 | Power cable 2 m For China | For China CCC standardized product 2 m |
