Features
Optimize post-process machining
This is a post display LED model that supports post-process.
It displays the measurement values of the measuring items, and the judgment results are displayed by rank with LEDs, making the results easy to understand at a single glance.
Improved visibility
Uses large 3-color, 7-seg LEDs. Different colors are used so you can understand the judgment results, even from a distance.
A higher level of functionality enables utilization of a wider range of applications
Measurement of two items: Outer diameter + end face, outer diameter + outer diameter and various other variations are available
P memory function: Suitable for dynamic measuring after work on surface grinders.
BCD/BIN output function: Can output data with additional I/O2 board
High speed and high functionality with two RISC CPUs
Two CPUS are used to achieve high-speed digital processing smoothing filter of various types of signals, and a 7-stage LPF (low pass filter) selection function is included as a standard feature.
Provides real-time processing of notch processes.
Data sampling function

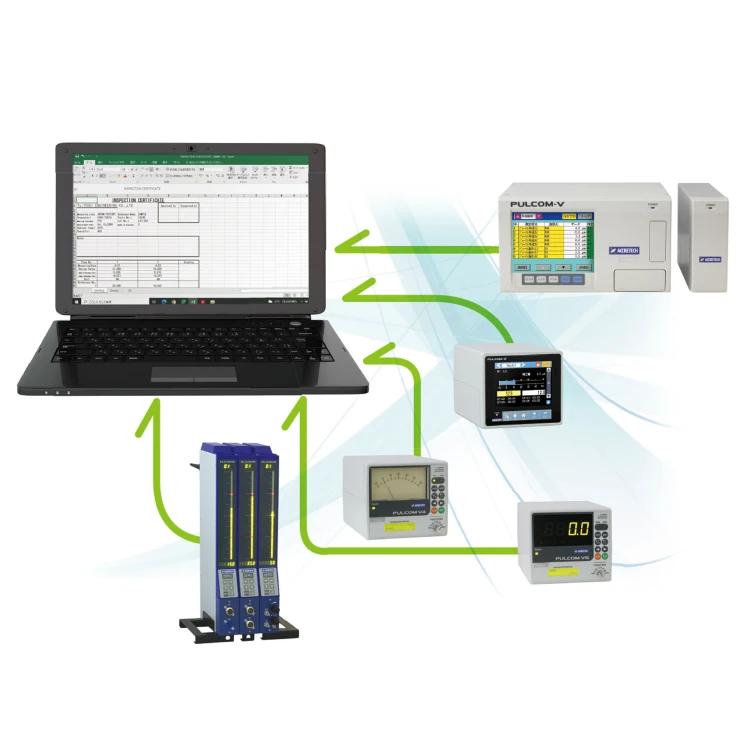

By using the optional RS-232C interface function with DataLink X (sold separately), measurement data can be outputted to an Excel file.

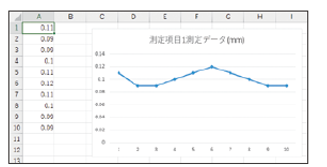

The outputted data can be used to create graphs for management of machining data.
Superior Ease of Maintenance
Simplified I/O Monitor
Wiring with machine can be easily checked
Self-Diagnostic Program
Interactive verifications enable user to perform primary maintenance.
Upward Compatibility with U600
The U600 can be replaced by using an optional I/O cable.

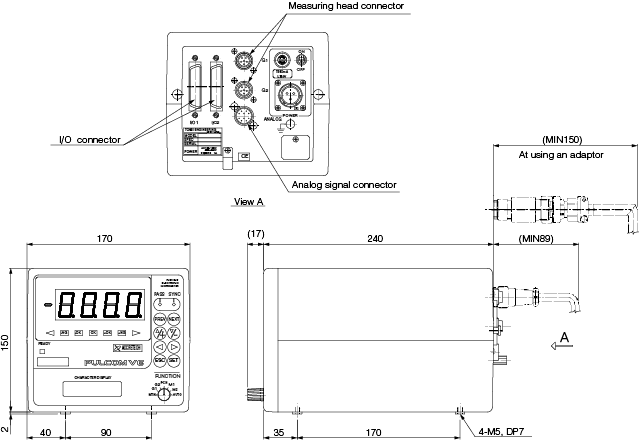

External view
Specifications
| Basic specifications | |
| Product name | PULCOM V6B |
| Model number (representative | E-PV6xx |
| Applications | Optimal for post-process machining |
| Display method | 3-color, 7 seg LED + LCD character display |
| Display items | Measurement result, settings, error messages |
| Measurement value display range | -999 to +999 μm |
| Resolution | 1 μm (units of 0.1 within the range -99.9 to +99.9 μm) |
| Display unit | μm |
| Human interface | Sheet key + rotary SW |
| Sampling speed | 1 msec |
| Data update time | 8 msec |
| Display separation / panel-type model | - |
| IP grade | IP54 (Front panel only) |
| Ambient usage temperature/humidity | 0℃ to 40℃ / 10 to 90% R.H. (No condensation) |
| Vibration resistance/shock resistance | JIS C1003 compliance (X, Y, Z 0.3 mm, 10 to 55Hz） |
| CE mark | Partially supported |
| Outer dimensions (W) × (D) × (H) / weight | 170 × 240 × 152 mm / approx. 3.6 kg |
| Power supply / power consumption | AC85 to 250 V/30 VA |
| Accessories | Power cable 6 m, I/O-1 Input/Output cable, fuse × 2, instruction manual |
Options
| Options | ||
| Product code | Product name | Remarks |
| 0935110 | External offset (grade) | Function for correcting measurement data using external signals |
| 0935111 | P-type memory (synchronized) | Function for storing the max value, min value, and P-P value of continuous measurement values |
| 0935112 | BCD/Binary (open collector) output function | Function for outputting measurement data in BCD or binary format |
| 0935113 | BCD/Binary (open emitter) output function | Function for outputting measurement data in BCD or binary format |
| 0935114 | BCD/Binary (open drain) output function | Function for outputting measurement data in BCD or binary format |
| 0935115 | Post memory (unsynchronized | Function for storing the max value, min value, and P-P value of post measurement |
| 0935116 | Analog output function | Function for performing voltage conversion of measuring item data that has been set and outputting it to an external destination |
| 0935117 | 2 measuring items (M2) supported | Measuring items 2 can be set |
| 0935119 | Repeat counter | For post-process: Function for monitoring displacement of finished dimensions and reflecting it to the machining device |
| 0935120 | RS-232C Interface function | RS-232C terminal added |
| 0930704 | Rack mount adapter | Pedestal for installation |
| 0930705 | PULCOM T interchangeable rack mount adapter | Pedestal for installation for use when replacing from PULCOM T |
| 0930707 | PULCOM T alternative base installation plate | Device for installation for use when replacing from PULCOM T |
| 0930708 | Analog output cable | Output cable for use when outputting judgment results with analog output |
| 0935123 | U600 ⇔ V6 I/O conversion cable (For OUT1) | For replacing from U600 |
| 0935124 | U600 ⇔ V6 I/O conversion cable (For BCD output) | For replacing from U600 |
| 0935125 | U600 ⇔ V6 I/O conversion cable (For OUT1, OUT2) | For replacing from U600 |
| 0935128 | V6 RS-232C output cable | RS-232C connection cable |
| 0935129 | I/O 1 cable customized length (Per 1 m) | Price per m of length specified |
| 0935130 | I/O 2 cable customized length (Per 1 m) | Price per m of length specified |
| 0937722 | Power cable customized length (Per 1 m) | Price per m of length specified |
| 0935132 | V6 specialized RS-232C output cable customized length (Per 1 m) | Price per m of length specified |
| 0937500 | DataLink X | Windows 10 supported |
| 0935039 | Cost to produce system specifications for approval | When a system order is not included |
| 0935040 | Cost for additional operator’s manual | When three or more are required |
