Controller Data Collection Software
DataLink X
Features
Supports for Our Many Kinds of Controllers
DataLink X supports our controller PULCOM series: V10A, V9, V8, V6B, V4B, MINICOM-X, MINICOM-XD, MINIAX, ELCOM 8, and E-ML-F10.

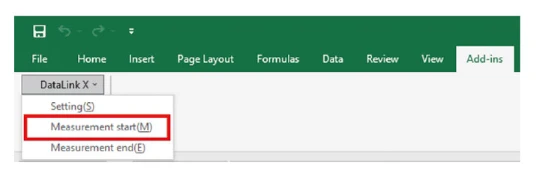

Easy-to-Operate Automatic Data Collection
Once the measurement is started on the PC, the measurement data is automatically displayed on an Excel file each time the controller performs a measurement.

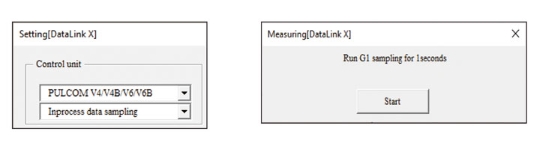

Support for In-Process Data Sampling
By setting up a dedicated configuration, measurement data for in-process processing in the PULCOM V6B/V4B can be acquired for a specified time.

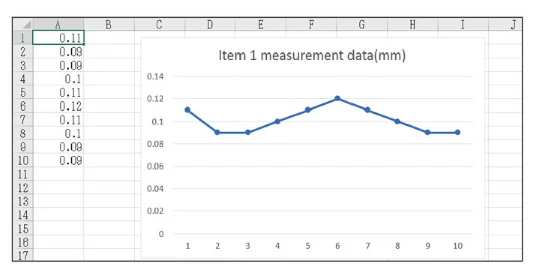

Easy Processing of Gathered Data
Measurement data is imported into an Excel file, so data can be easily edited and graphed.
Processing condition graph
Specifications
| Basic specifications | |
| Product name | DataLink X |
| Applications | In-process/Post-process |
| Display items | Measurement results |
| Measurement value display range | Dependent on the controller |
| Resolution | Dependent on the controller |
| Display unit | Dependent on the controller |
| Human interface | Dependent on the installed PC. |
| Sampling speed | Dependent on the controller |
| Data update time | Dependent on the controller |
| Accessories | Instruction manual |
| Operating Environment | |
| OS | Windows 10 |
| Required software | Microsoft Office 2013 to Microsoft Office 2019 or Office 365 |
| Required hardware | RS-232C port (any one channel of COM1 - COM256 ) or an Ethernet port |
| *USB-RS conversion cables can be used. | |
| Corresponding controller (RS-232C connection) | PULCOM V10A (RS-232C option is required) PULCOM V9 (RS-232C option is required) PULCOM V7/V8 (RS-232C option is required) PULCOM V4/V4B/V6/V6B (RS-232C option is required) MINICOM-X/XD (RS-232C option is required) MINIAX, ELCOM 8, E-WL-F10 |
| Corresponding controller (Ethernet connection) | E-WL-F10 |
