Precision Measuring Instrument
Features
Application
Optimal for small-scale detection processes such as manual operation processes and semi-automatic machines.
Can also be loaded in semi-automatic machines.

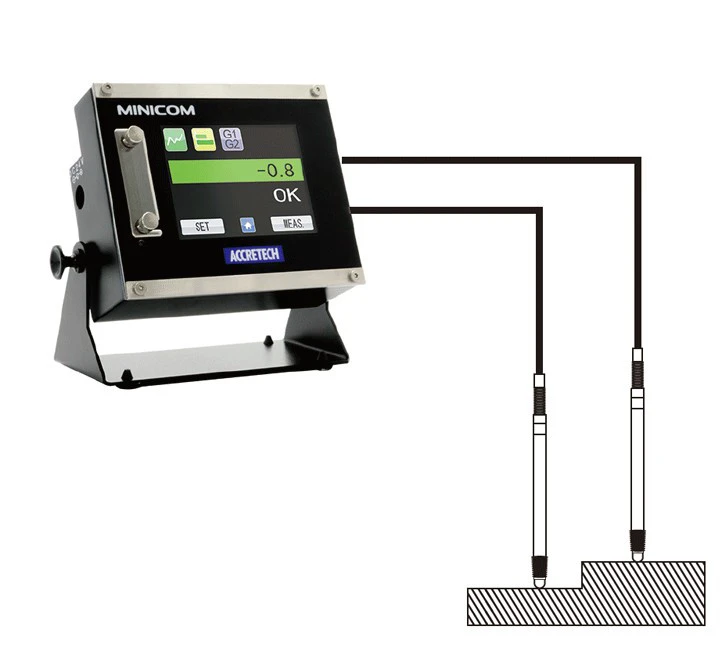

Level difference measurement with pencil type measuring instrument
Easy To Save Data
Measurement conditions and measurement data can be saved to USB memory.
Support Multi Language
Operators can easily use this electric micrometer by switching to their local language.
The following languages are supported: Japanese, English, Chinese, Korean, Thai, Indonesian, Spanish, and Portuguese.

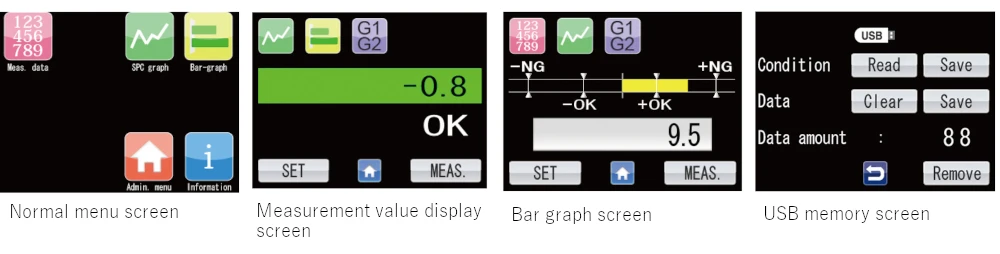

Screen configuration that achieves simple operability

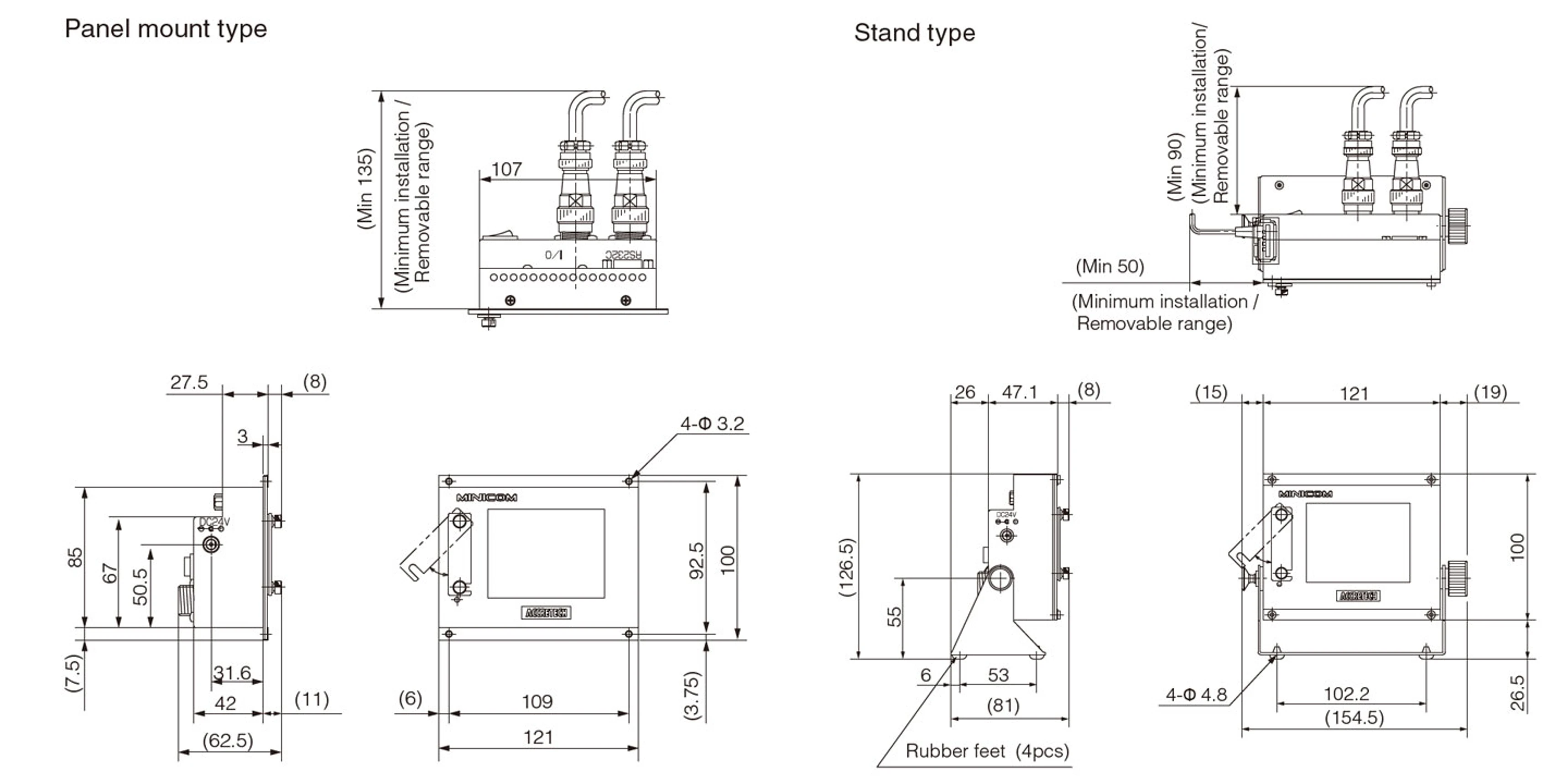

External view
Specifications
| Basic specifications | |
| Product name | MINICOM-X |
| Model number (representative) | MX4xx |
| Applications | Post-process |
| Display method | 3.5-Inch TFT color LCD |
| Display items | Measurement result, item list, settings |
| Measurement value display range | Selectable from ± 50 μm, ± 100 μm, ± 500 μm ± 800 μm, ± 2000 μm, ± 3000 μm ± 5000μm |
| Resolution | 1.0 μm, 0.1 μm, 0.01 μm |
| Display unit | μm, mm |
| Human interface | Resistive touch panel |
| Sampling speed | 10 ms |
| Data update time | 10 ms |
| Display separation / panel-type model | - |
| IP code | Front panel: Compliance with IP55 Rear panel: Not compliant with IP |
| Ambient usage temperature/humidity | 0℃ to 50℃ 10 to 90% R.H. (No condensation) |
| Vibration resistance/shock resistance | JIS C 1003 compliance |
| CE mark | - |
| Outer dimensions (W) × (D) × (H) / weight | 121×62.5×100mm/0.53 kg |
| Power source / power consumption | DC24 V/5 W |
| Accessories | - |
Options
| Options | ||
| Product code | Product name | Remarks |
| 0935412 | MX I/O FCTN | I/O function options |
| 0935413 | MX RS232C FCTN |
RS-232 function options |
| 0935410 | STAND 120*100 |
MINICOM-X stand |
| 0935414 | I/O CABLE 3 m | Cable for I/O option D-SUB 15 pin 3 m |
| 0935418 | I/O CABLE 6 m | Cable for I/O option D-SUB 15 pin 6 m |
| 0935415 | RS-232C CABLE |
Cable for I/O option 3 m |
| 0935416 | RS-232C CABLE |
Cable for I/O option 5 m |
| 0935417 | RS-232C CABLE |
Cable for I/O option 15 m |
| 0935411 | 24 V05 A ACPWR |
24 V0.5 A common AC adapter With plug for use in Japan |
| 0935460 | 24 V05 A ACPWR |
24 V0.5 A common AC adapter With plug for use in North America (UL, CSA standards) |
| 0935461 | 24 V05 A ACPWR |
24 V0.5 A common AC adapter With plug for use in European Union (CE standard) |
| 0935462 | 24 V05 A ACPWR |
24 V0.5 A common AC adapter With plug for use in South Korea |
| 0935463 | 24 V05 A ACPWR |
24 V0.5 A common AC adapter With plug for use in China (CCC standard) |
| 4220574 | USB MEMORY 4 GB |
Dedicated USB memory 4 GB |
| 0937500 | DataLink X | DataLink software |
