Precision Measuring Instrument
In-process
Post-process
Exclusive for Outer diameter
LVDT gauge
High Accuracy
In-process Measuring Head Exclusive for Outer Diameter
MOD
Features
Outer diameter measurement model
This machine is easy to use with a simple mechanism specialized for outer diameter measurement. In addition, its excellent durability is ideal for harsh environments.
High precision
Repeatability of 0.2 μm (4 σ) or less
Resistant to temperature changes
This machine maintains stable precision even when starting up after suspension of operation or in a plant environment where the temperature changes.
Space saving
This machine achieves a roughly 30% smaller footprint for both the length and height of the main unit compared to the Σ gage.

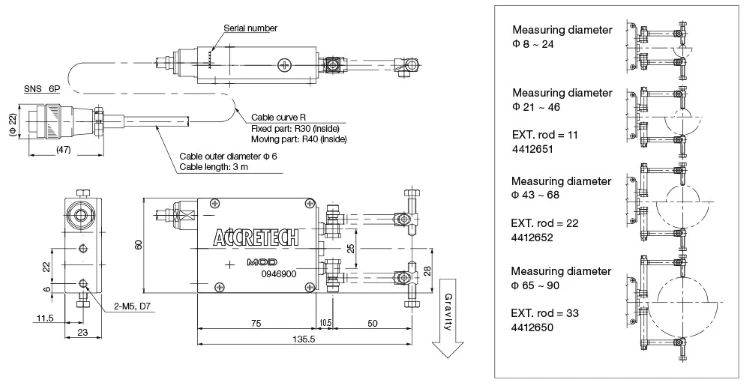

External view
Specifications
| Basic specifications | ||
| Product name | MOD | |
| Model | MOD-P3 | MOD-P6 |
| Product code | 0946900 | 0946901 |
| Repeatability | ≦0.2 ㎛/4 σ | |
| Measuring force | 1.5 N | |
| Linearity | Over 0.1%, 0.5% F.S. or less | |
| Measuring range | -200 to +500 μm | |
| Pre travel (one side) | 0.24 to 0.28 mm | |
| Measuring diameter | φ 5 to φ 90 mm | |
| Workpiece profile | Continuous surface outer diameter | |
| Retract type | ー | |
| Retract amount | ー | |
| Retract mechanism (retract air source) | ー | |
| Standard finger length | 50 mm | |
| Waterproof standard | IP67 compliant | |
| Cable thickness and length | φ 6×3 m | φ 6×6 m |
| Weight (main unit) | Approx. 0.6 kg | |
| Remarks | Outer diameter only | |
| No. of outputs | 1 | |
