PULCOM V7 PULCOM V8
Features
Intelligent Judgment Control
The V7 and V8 have a variety of standard calculation and compensation functions. A host of optional software allows numerous functions to be added.
In-Process/Post-Process Use
Two models are available: the V7 for in-process machining (analog meter model), and the V8 for post-process applications (LED digital model). However, both models can be used for in-process machining and post-process applications.
Multipoint Measurement with 4-Channel Simultaneous Parallel Processing
The provision of 2 or 4 input detectors enable simultaneous parallel/calculation processing and overall judgment processing for a maximum of four items.
Simple display functions
The V7 for in-process machining has a large analog meter and digital display. The V8 for post-process applications is equipped with an LED digital meter.
Easy operation
A rotary switch facilitates intuitive operation. In addition to easy setting of various conditions and display of compensation values, a fluorescent display facilitates one-glance confirmation of measured values and results.
Compatible with PULCOM U2000A
The units can be used to replace the U2000A in most cases.

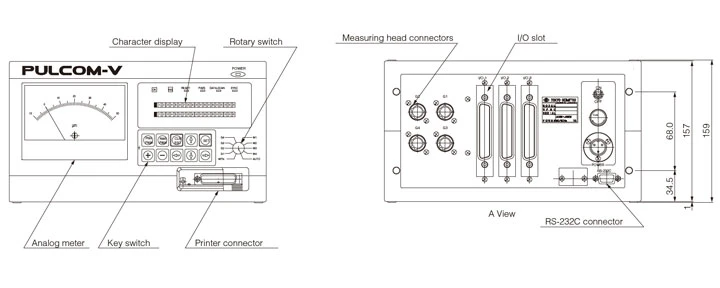

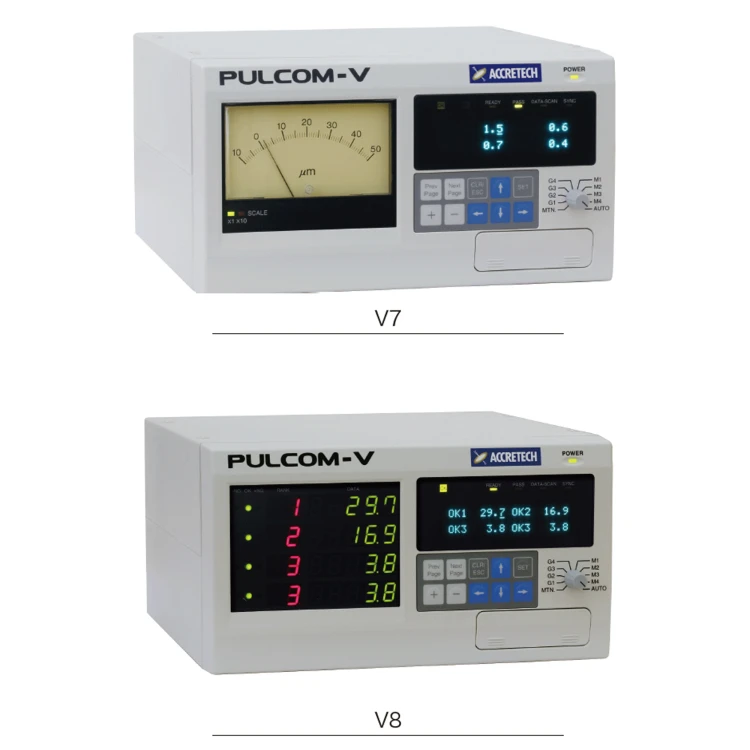

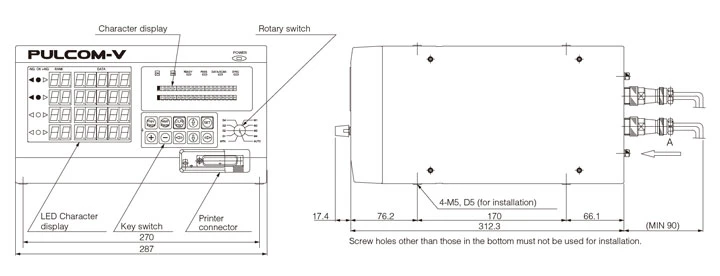

External view
V7
V8
Specifications
✓: Available -: Not available
| Basic specifications | ||
| Product name | PULCOM V7 | PULCOM V8 |
| Model number(representative) | E-PV7xxxxx | E-PV8xxxxx |
| Applications | In-process/Post-process | |
| Display method | Indicator Fluorescent character display (simultaneous display) |
LED character display Fluorescent character display (simultaneous display) |
| Display items | Measurement item/List of items/Settings | |
| Display range of measurement data | Measurement range 200 μm (HI: 0 to ±19.99, LO: ±20.0 to ±199.9) Measurement range 500 μm (HI: 0 to ±49.99, LO: ±50.0 to ±499.9) Measurement range 1000 μm (HI: 0 to ±99.99, LO: ±100.0 to ±999.9) Measurement range 2000 μm (HI: 0 to ±199.99, LO: ±200.0 to ±1999.9) Measurement range 5000 μm (HI: 0 to ±499.99, LO: ±500.0 to ±4999.9) |
|
| Resolution | Measurement range at 200 μm HI: 0.01/0.05/0.1 μm, at LO: 0.1/0.5/1.0 μm Measurement range at 500 μm HI: 0.05/0.1 μm, at LO: 0.5/1.0 μm Measurement range at 1000 μm HI: 0.1/0.5 μm, at LO: 1.0 μm Measurement range at 2000 μm HI: 0.1/0.5 μm, at LO: 1.0 μm Measurement range at 5000 μm HI: 0.5/1.0 μm, at LO: 1.0 μm |
|
| Display unit | μm | |
| Human interface | Rotary switch + sheet key | |
| Sampling speed | 1 msec | |
| Data update time | 20 msec | |
| Display separation/panel-type model | - | |
| IP code | IP50 | |
| Ambient usage temperature/Humidity | 0 to 40°C / 10 to 90% R.H. (no condensation) | |
| Vibration resistance/Shock resistance | JIS C1003 compliance (X, Y, Z 0.3 mm, 10 to 55 Hz) | |
| CE mark | ✓ | |
| Outer dimensions (W) × (D) × (H) /weight | 287 × 325 × 159 mm/ 6.5 kg | |
| Power source/power consumption | AC 85 to 250 V, 70 VA | |
| Accessories | Fuse, power cable | |
Options
| Option | ||
| Product code | Product name | Remarks |
| 0930221 | Size shift function (hardware only, software is separate) | Combination with either 0930222 to 0930224 |
| 0930222 | Size shift function up to 6D (software only) | Separate 0930221 is required, supported different diameters: up to 6D (diameter) |
| 0930223 | Size shift function up to 20D (software only) | Separate 0930221 is required, supported different diameters: up to 20D (diameter) |
| 0930224 | Size shift function 21D or more (software only) | Separate 0930221 is required, supported different diameters: 21D (diameter) to 40D |
| 0930225 | Repeat counter tool compensation | Includes I/O 3 port and I/O 3 cable 6 m Monitors and outputs post measurement dimensional drift |
| 0930226 | Zero shift | Includes I/O 3 port and I/O 3 cable 6 m Monitors and compensates zero point in-process measurement dimensional drift |
| 0930227 | External offset function | Includes I/O 3 port and I/O 3 cable 6 m Corrects in-process machining dimensions with external signal |
| 0930228 | RUN signal output function | Includes I/O 3 port and I/O 3 cable 6 m RUN signal output when performing judgment |
| 0930229 | Formula input | Allows expressions for measuring items to be changed |
| 0930248 | Input signal memory 1 CH | Required for MAX, MIN, and P-P judgment |
| 0930230 | Input signal memory 2 CH | Required for MAX, MIN, and P-P judgment |
| 0930232 | External Auto CAL | Includes I/O 3 port and I/O 3 cable 6 m |
| 0930233 | BCD/binary (Open collector) output function | Includes I/O 2 port (open collector) and I/O 2 cable 6 m |
| 0930234 | BCD/binary (Open emitter) output function | Includes I/O 2 port (open emitter) and I/O 2 cable 6 m |
| 0930235 | BCD/binary (Open drain) output function | Includes I/O 2 port (open drain) and I/O 2 cable 6 m |
| 0930236 | RS-232C output function | Outputs judgment result and measurement value in serial |
| 0930237 | RS-232C cable | 5 m |
| 0937500 | DataLink X | PC software (optional RS-232C output function is required) |
| 0930239 | Smoothing (gauge/measurement) | Moving average method for values |
| 0930240 | Statistical processing | Calculates the maximum value, minimum value, average value, standard deviation, and Cp from measurement results |
| 0930241 | Workpiece change function (tolerance switching) | Includes I/O 3 port and I/O 3 cable 6 m |
| 0930242 | External auto zeroing function | Includes I/O 3 port and I/O 3 cable 6 m Gauge zeroing with external signal |
| 0930243 | BCD judgment output | |
| 0930244 | Meter switching function | Switches analog meter output item with external signal |
| 0930245 | Dimension error detection | Includes I/O 3 port and I/O 3 cable 6 m Detects faulty diameters caused by mill scale or abrasive particles |
| 0930080 | Printer CT-S601 Ⅱ S3PAJ-WH-P | |
| 0930253 | RP8080T (Recording paper for CT-S601 Ⅱ x 10 rolls) | |
| 0301013 | I/O 1 port (open collector) | |
| 0301010 | I/O 1 port (open drain) | |
| 0341202 | I/O 1 cable 6 m | |
| 0930142 | I/O 1 cable custom length | |
| 0301011 | I/O 2 port (open collector) | |
| 0301014 | I/O 2 port (open emitter) | |
| 0301015 | I/O 2 port (open drain) | |
| 0341200 | I/O 2 cable 6 m | |
| 0341201 | I/O 2 cable custom length (per 1 m) | |
| 0301012 | I/O 3 port (open collector) | |
| 0301016 | I/O 3 port (open drain) | |
| 0930143 | I/O 3 port (dedicated for input) | |
| 0930144 | I/O 3 cable 6 m | |
| 0930147 | I/O 3 cable custom length (per 1 m) | |
| 0930148 | Power cable 6 m | Power cable for V7/V8 |
| 0930155 | Power cable custom length | |
| 4851025 | Judgment signal custom assigning | |
