Wide Range Measuring Head

PULCOM Σ 20 / Σ 8

Support

Catalog download

Features External view
Specifications

Features

Auto Zero Set for Diameter Differences within 20 mm (7 mm)

For a diameter difference within 20 mm (7 mm), the changing of setup is completely automatic, allowing zero set to be performed simply by providing signal input to the control unit. When the difference in diameter exceeds 20 mm (7 mm), it can be handled by replacing it with a long finger.

*The figures in parentheses are for when using Σ8.

Air Retract Mechanism

The retract mechanism moves the stylus out of the way when the unit is inserted, allowing in-process measurements to be safely performed, and operations such as insertion from the axial direction of the cylinder allow you to freely perform post process measurements.　

Measurements of Workpieces with Notches

Workpieces with splines and other types of notches can be measured.

Compatible with a Maximum of 40 Sizes

By combining this model with the PULCOM V10A model that has the size shift function, up to 40 types of workpieces can be automatically measured.

Based on PULCOM Σ

The internal mechanism inherited from Σ is highly precise, and the same attachments can be used since it has exactly the same outer appearance and dimensions.

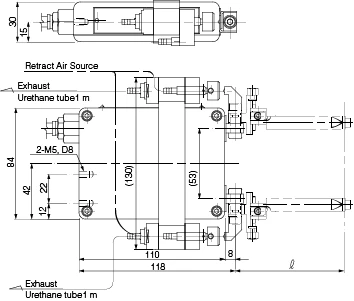

External view

E-TS-8092B, 8096B, 8162B, 8166B, 8192B, 8196B
4162, 4166, 4192, 4196

E-TS-8082B, 8086B, 8182B, 8186B, 8202B, 8206B
4182, 4186

Note 1

Retracting the stylus

Retract the stylus only during the workpiece approach, and at all other times, place it in the retract release (measurement) state.

Specifications

Basic specifications
Product name	PULCOM Σ 8-OD-AR
Model	E-TS-8092B-P3	E-TS-8092B-P6	E-TS-8096B-P3	E-TS-8096B-P6	E-TS-8162B-P3	E-TS-8162B-P6	E-TS-8166B-P3	E-TS-8166B-P6
Product code	0947613	0947614	0947615	0947616	0947073	0947074	0940863	0940864
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N (zero point)
Linearity	ー
Measuring range	ー
Pre travel (one side)	0.19 to 0.24 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 8 to φ 68.5 mm (post process: φ 1 to φ 68.5 mm)
Measuring diameter (including optional, diameter difference compatible range)	φ 5 to φ 143.5 mm (post process: φ 1 to φ 143.5 mm)
Workpiece profile	Continuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	1 (6-pin)				2 (6-pin, 6-pin)

Basic Specifications
Product name	PULCOM Σ 8-OD-SAR
Model	E-TS-8192B-P3	E-TS-8192B-P6	E-TS-8196B-P3	E-TS-8196B-P6
Product code	0940885	0940886	0940890	0940891
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N (zero point)
Linearity	ー
Measuring range	ー
Pre travel (one side)	0.12 to 0.15 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 8 to φ 68.5 mm (post process: φ 1 to φ 68.5 mm)
Measuring diameter (including optional, diameter difference compatible range)	φ 5 to φ 143.5 mm (post process: φ 1 to φ 143.5 mm)
Workpiece profile	Discontinuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2 (6-pin, 6-pin)

Basic Specifications
Product name	PULCOM Σ 8-ID-AR
Model	E-TS-8082B-P3	E-TS-8082B-P6	E-TS-8086B-P3	E-TS-8086B-P6	E-TS-8082B-N3	E-TS-8082B-N6	E-TS-8086B-N3	E-TS-8086B-N6
Product code	0940813	0940814	0940820	0940822	0940816	0940817	0940821	0940923
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N (zero point)
Linearity	ー
Measuring range	ー
Pre travel (one side)	0.19 to 0.24 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 3 to φ 68.5 mm (post process: φ 1 to φ 68.5 mm)
Measuring diameter (including optional, diameter difference compatible range)	φ 3 to φ 123.5 mm (post process: φ 1 to φ 143.5 mm）
Workpiece profile	Continuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	1 (6-pin)

Basic Specifications
Product name	PULCOM Σ 8-ID-AR
Model	E-TS-8182B-P3	E-TS-8182B-P6	E-TS-8186B-P3	E-TS-8186B-P6	E-TS-8182B-N3	E-TS-8182B-N6	E-TS-8186B-N3	E-TS-8186B-N6
Product code	0940781	0940782	0940865	0940867	0940860	0940862	0940866	0940868
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N (zero point)
Linearity	ー
Measuring range	ー
Pre travel (one side)	0.19 to 0.24 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 3 to φ 68.5 mm (post process: φ 1 to φ 68.5 mm)
Measuring diameter (including optional, diameter difference compatible range)	φ 3 to φ 123.5 mm
Workpiece profile	Continuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2 (6-pin, 6-pin)

Basic Specifications
Product name	PULCOM Σ 8-ID-SAR
Model	E-TS-8202B-P3	E-TS-8202B-P6	E-TS-8206B-P3	E-TS-8206B-P6	E-TS-8202B-N3	E-TS-8202B-N6	E-TS-8206B-N3	E-TS-8206B-N6
Product code	0940870	0940872	0940876	0940878	0940871	0940873	0940877	0940879
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.75 N (zero point)
Linearity	ー
Measuring range	ー
Pre travel (one side)	0.12 to 0.15 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 3 to φ 68.5 mm
Measuring diameter (including optional, diameter difference compatible range)	φ 3 to φ 123.5 mm
Workpiece profile	Discontinuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 4.5 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2 (6-pin, 6-pin)

Basic Specifications
Product name	PULCOM Σ 20-OD-AR				PULCOM Σ 20-OD-SAR
Model	E-TS-4162-P3	E-TS-4162-P6	E-TS-4166-P3	E-TS-4166-P6	E-TS-4192-P3	E-TS-4192-P6	E-TS-4196-P3	E-TS-4196-P6
Product code	0940902	0940904	0940924	0940925	0940906	0940908	0940909	0940910
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.6 to 2.8 N
Linearity	ー
Measuring range	ー
Pre travel (one side)	5.2 to 5.8 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 8 to φ 75 mm (post process: φ 1 to φ 75 mm)
Measuring diameter (including optional, diameter difference compatible range)	φ 5 to φ 150 mm (post process: φ 1 to φ 150 mm)
Workpiece profile	Continuous surface				Discontinuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 6.0 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2 (8-pin, 8-pin)

Basic Specifications
Product name	PULCOM Σ 20-ID-AR
Model	E-TS-4182-P3	E-TS-4182-P6	E-TS-4186-P3	E-TS-4186-P6	E-TS-4182-N3	E-TS-4182-N6	E-TS-4186-N3	E-TS-4186-N6
Product code	0940917	0940714	0940919	0940923	0940926	0940927	0940928	0940929
Repeatability	≦1.0 ㎛/4 σ
Measuring force	0.6 to 2.8 N
Linearity	ー
Measuring range	ー
Pre travel (one side)	5.2 to 5.8 mm
Measuring diameter (including standard, diameter difference compatible range)	φ 3 to φ 75 mm
Compatible diameter (including optional, diameter difference compatible range)	φ 3 to φ 130 mm
Workpiece profile	Continuous surface
Retract type	Air type (measure with the air supply)
Retract amount (one side)	＜ 6.0 mm
Retract mechanism (retract air source)	0.3 to 0.5 MPa
Standard finger length	82 mm
Waterproof standard	IP67 compliant
Cable thickness and length	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m	φ 8×3 m	φ 8×6 m
Weight (main unit)	Approx. 1.3 kg
No. of outputs	2 (8-pin, 8-pin)
