Features

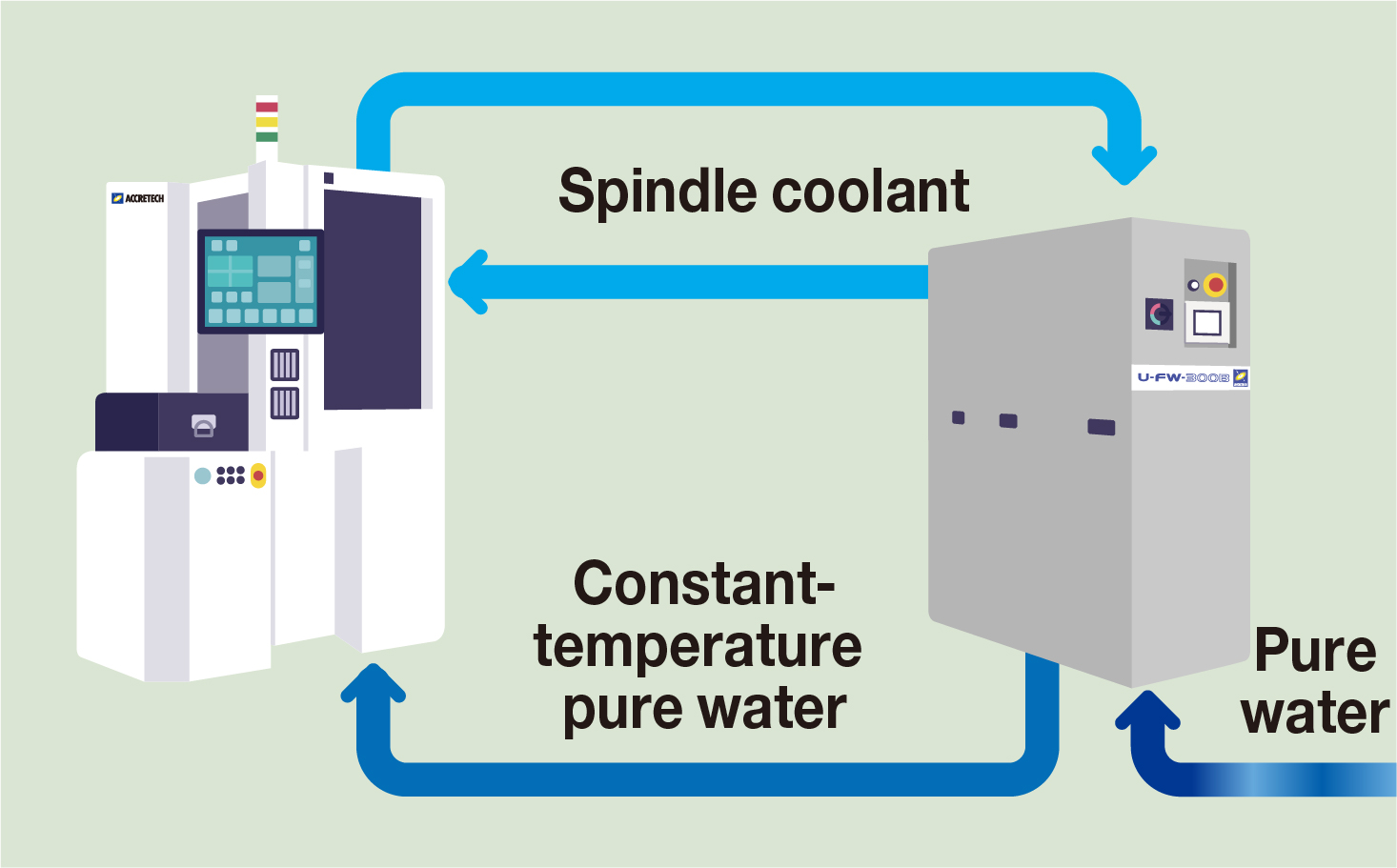

The machine that supplies constant temperature water to the dicing machine can keep the cutting water and spindle cooling water required for the equipment to the set temperature and supply it. When the constant temperature water device is used, the effect of the thermal expansion and thermal contraction of the device’s internal instrument is reduced, so enabling high-precision processing.
Specifications
Cutting water system
| Supply capability | 25 L/min |
| Cooling capability | 5300 W |
| Heating capability | 5300 W |
| Temperature setting | 20 to 25℃ |
| Temperature precision | Within ±0.5℃ |
| Filter | 1 µm x 1 |
Spindle cooling water system
| Supply capability | 8 L / min 1700 W |
| Cooling capability | 1700 W |
| Temperature setting | 20 to 25℃ |
| Temperature precision | Within ±0.5℃ |
Specifications
| Dimensions (W x D x H) | 372 mm x 1,230 mm x 1,200 mm |
| Weight | 265kg |
