Plate specifically designed for fine-grain blade conditioning

Conditioning Plate

Conditions the hub blade in a short time
Significant production cost reduction by replacing the silicon pre-cutting

Features

The RGC series conditioning plate significantly reduces the startup time of the fine-grained blade.
By using it before wafer dicing of the silicon or the compound semiconductor, etc., an excellent unclogged state of the blade tip is achieved, so improving the processing product rank.

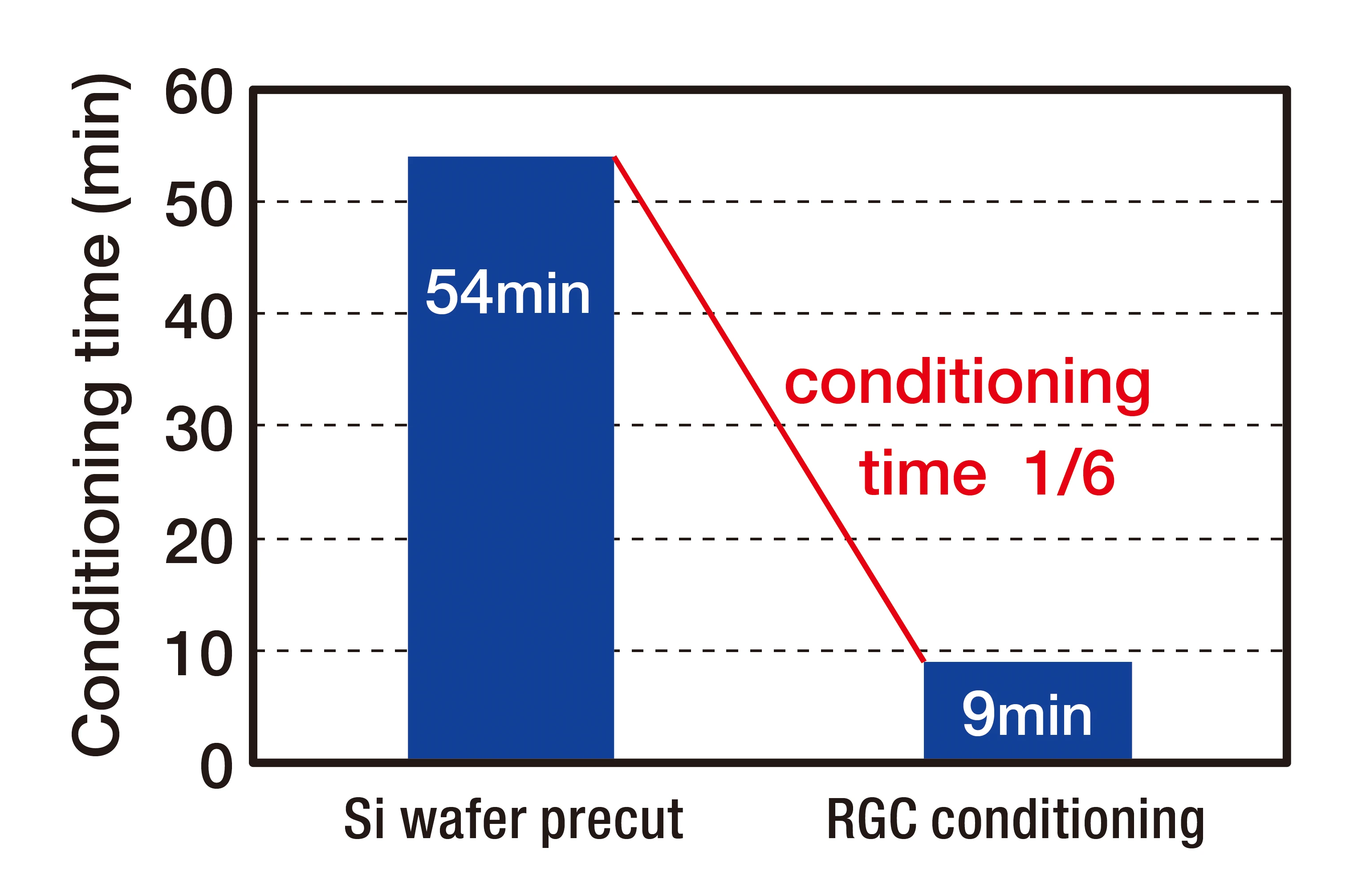

This achieves a significant reduction in the required time compared to the conventional process.

Specifications

The lineup of blade types according to each grit diameter

Product type and notation

Product type and notation

Size

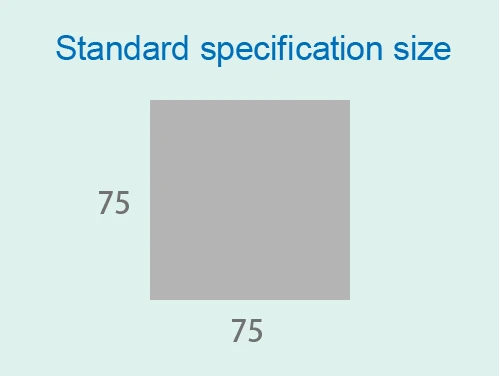

FS Standard specification size

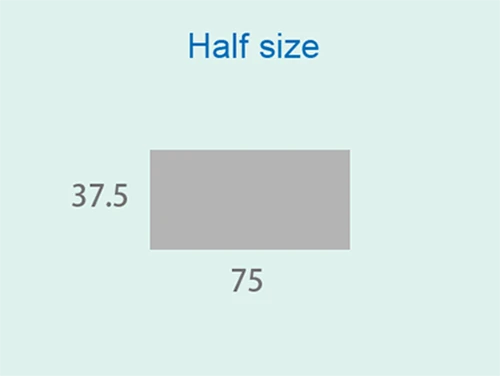

HS Half size

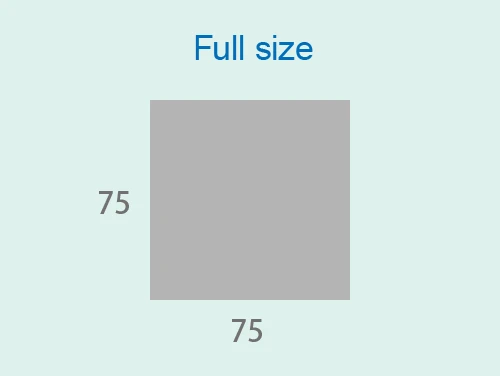

Standard size
Half size

* Please consult with us for customized dimensions.

Specifications Bond Grit type Thickness Application
RGC-20 Resin type GC 1mm #2000
RGC-30 Resin type GC 1mm #3000
RGC-35 Resin type GC 1mm #3500
RGC-40 Resin type GC 1mm #4000
RGC-50 Resin type GC 1mm #5000
RGC-60 Resin type GC 1mm #6000

Processing Target and Processing Example

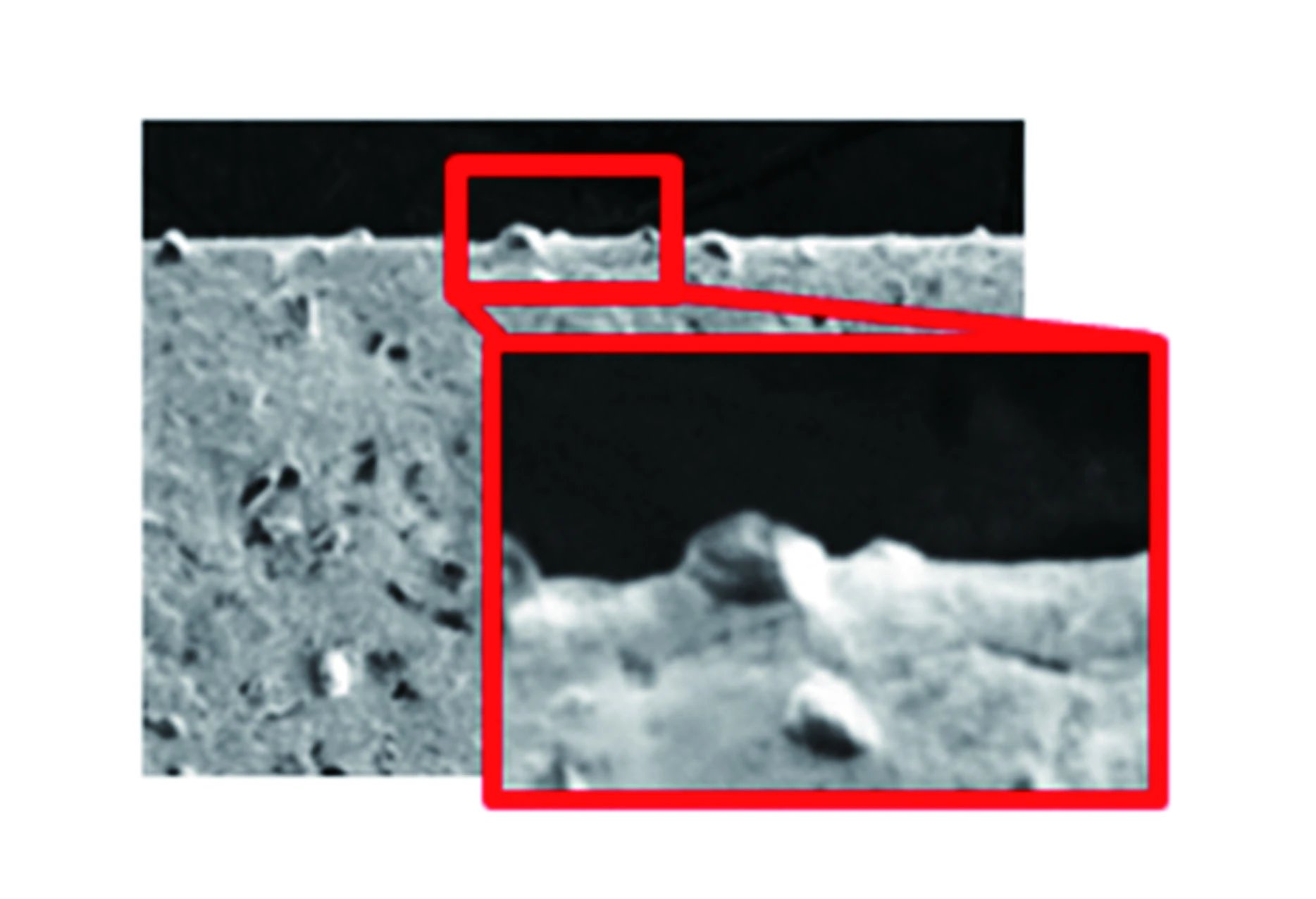

Silicon pre-cut and dressing plate    Blade tip comparison of RGC series

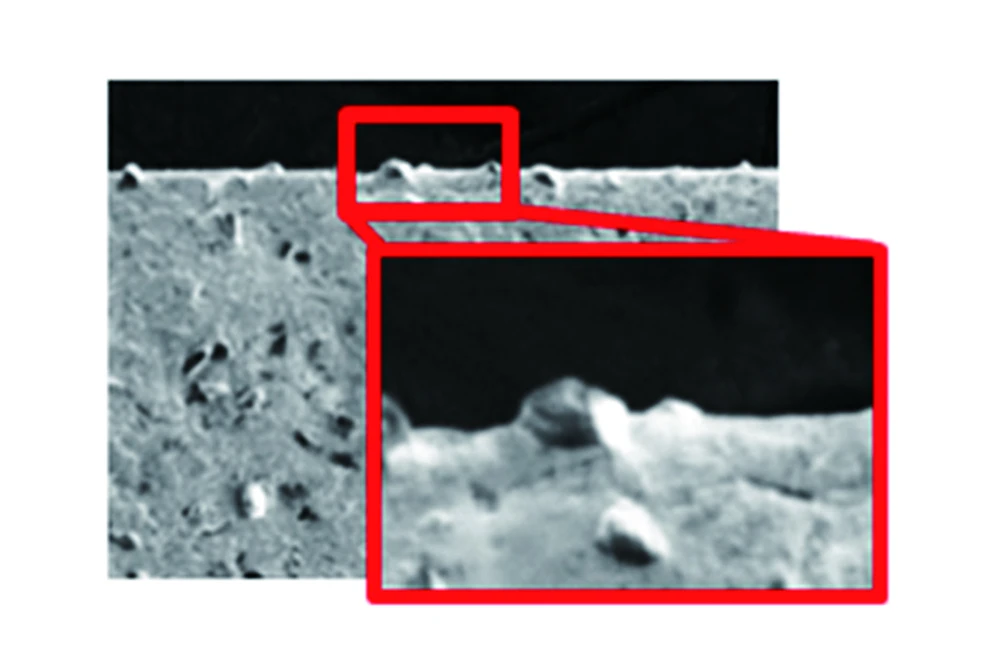

Silicon pre-cut
Silicon pre-cut

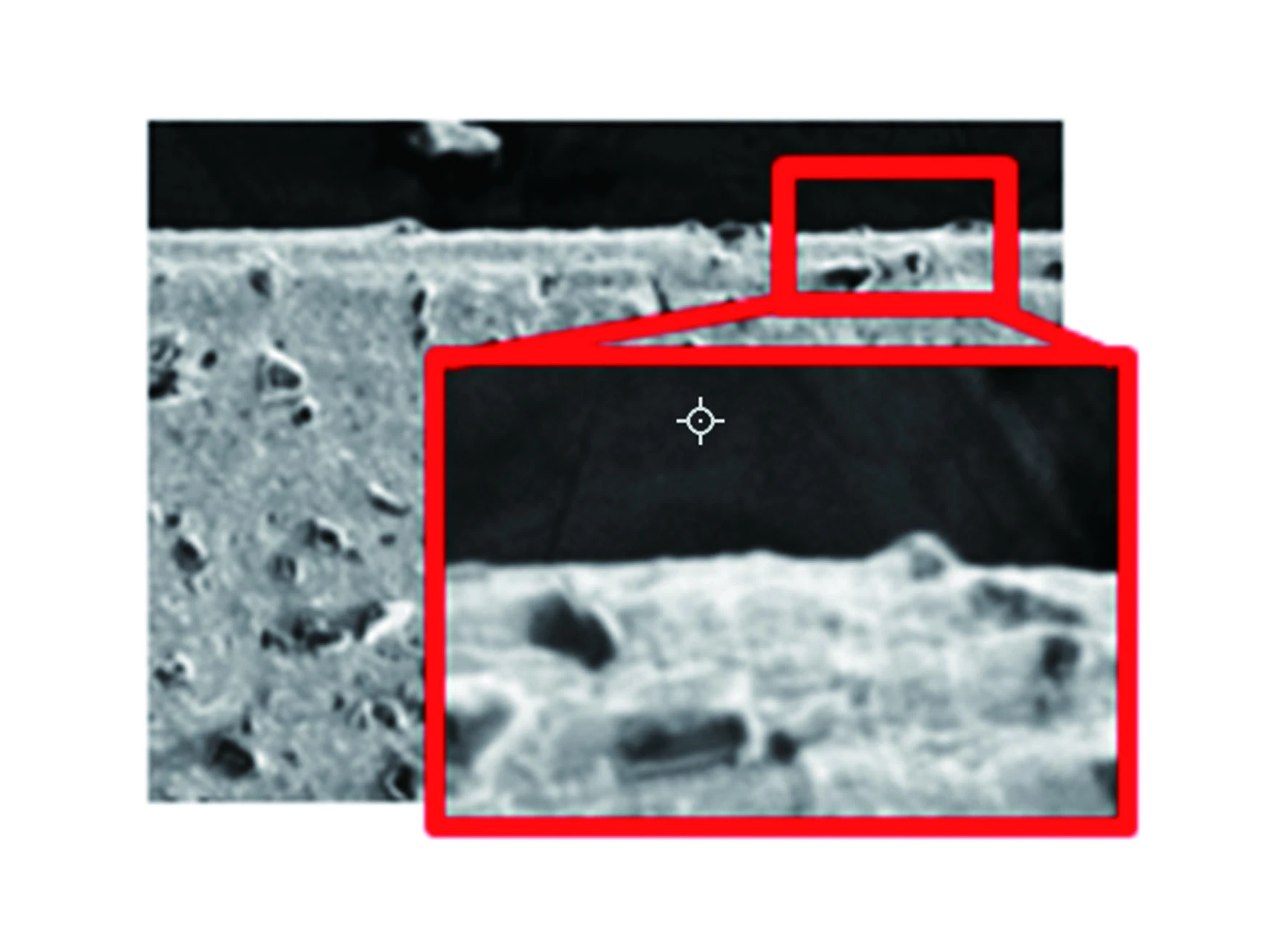

When using RGC

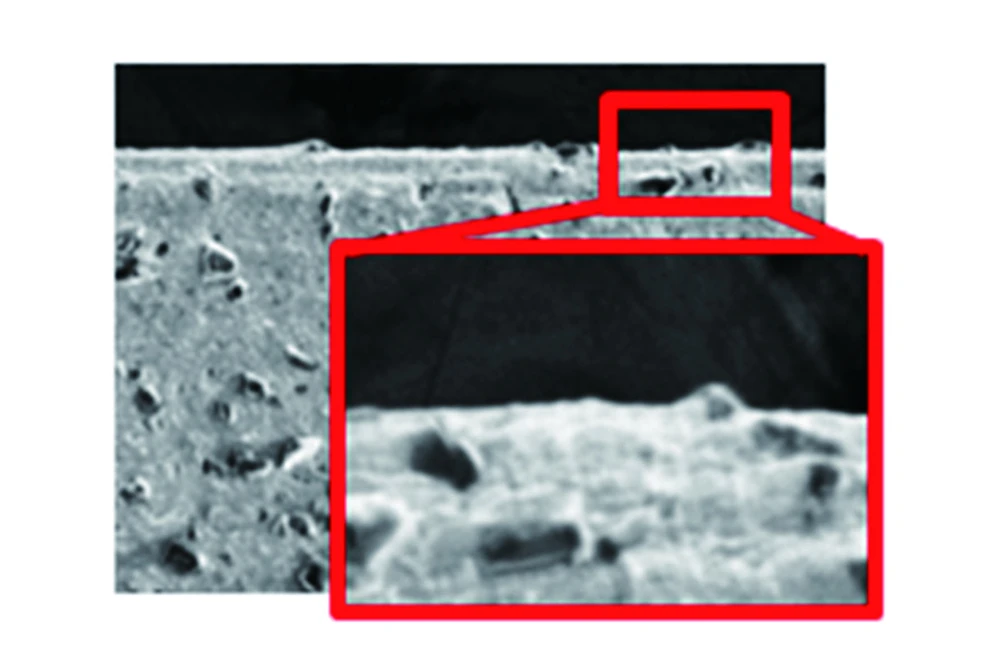

When using RGC
Processing Target and Processing Example
