Truing
The dressing plate brings out the performance of the diamond blade and provides stable product quality.

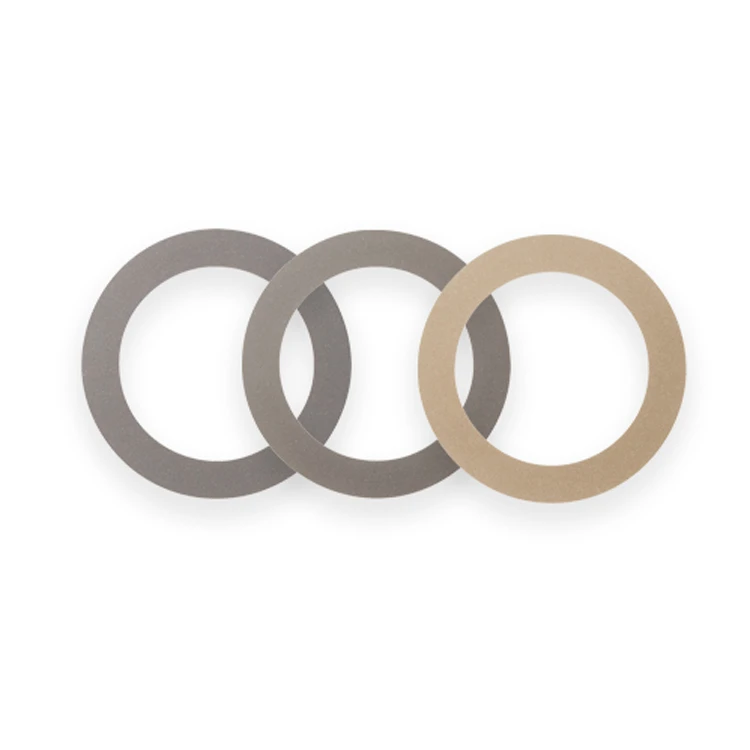

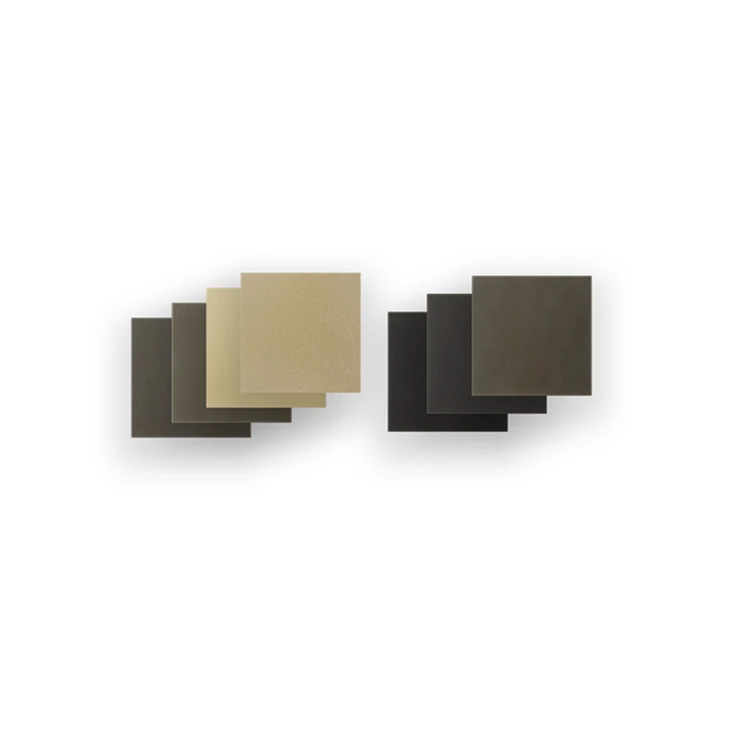

Dressing Plate
Features
Resin plate for blade truing and blade dressing
Can offer the variety of dress plates according to the blade specification
Use of the dress plate prior to the processing can bring out better performance and quality of the blade
We can suggest the conditions of use
Specifications
Specification and Notation

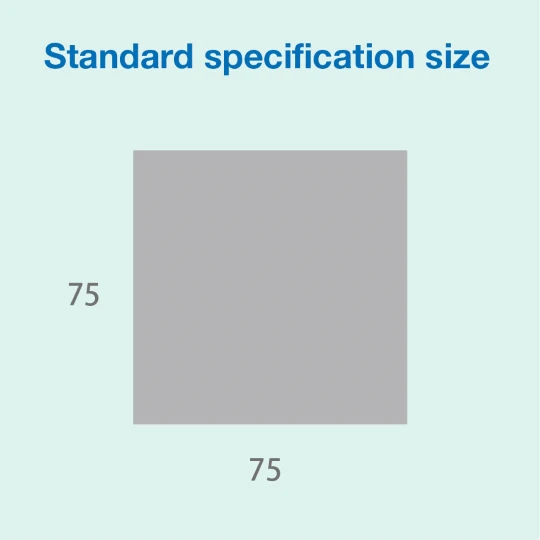

Size
* Please consult with us for customized dimensions.
| Type | Grit type | Thickness and Notation | Applicable grit size | ||||
| (μm) | 1mm | 2mm | 3mm | Nickel blade | Metal blade | Resin blade | |
| A2 | WA200 | A2-1 | A2-2 | A2-3 | 325-400 | 140-230 | |
| A4 | WA400 | A4-1 | A4-2 | A4-3 | 400-600 | 325 | 270-325 |
| C6 | GC600 | C6-1 | C6-2 | 500-700 | 400-800 | 400-500 | |
| C8 | GC800 | C8-1 | C8-2 | 700-1000 | 600-1000 | 600 | |
| C10 | GC1000 | C10-1 | C10-2 | 800-1000 | 800-1300 | ||
| C20 | GC2000 | C20-1 | 1200-1300 | 1000-2000 | |||
| C40 | GC4000 | C40-1 | 2000- | 2000- | |||
*Please contact us for dressing conditions.
*Dressing plates with tape are also available.
Processing Example

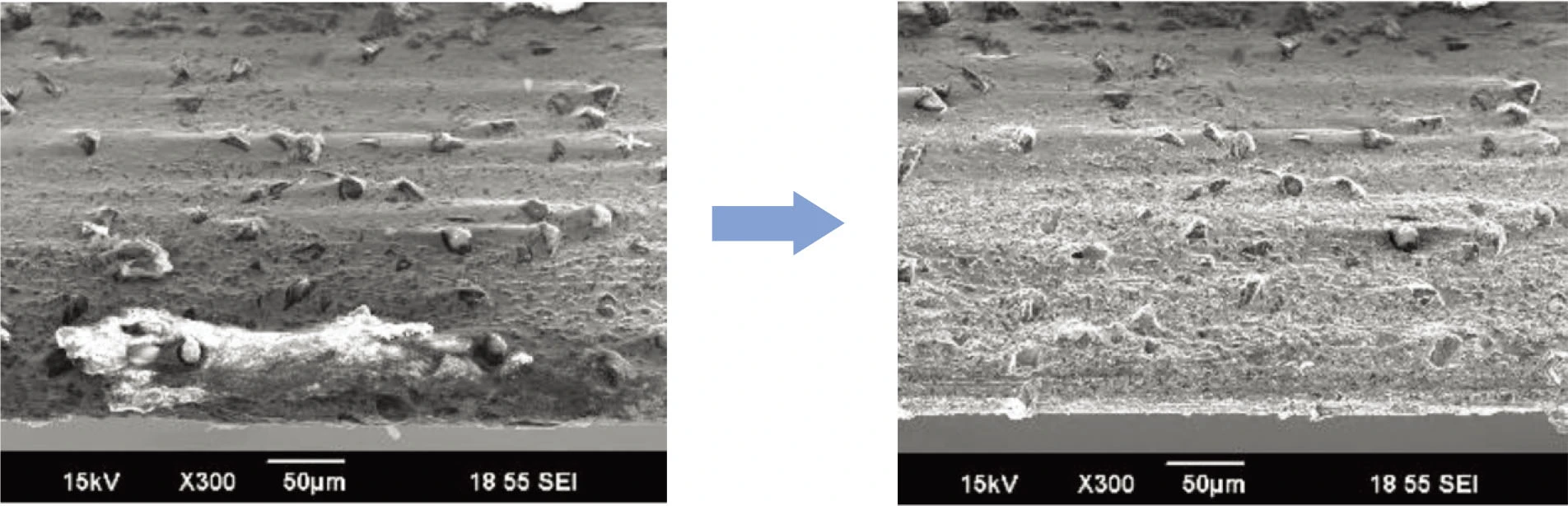

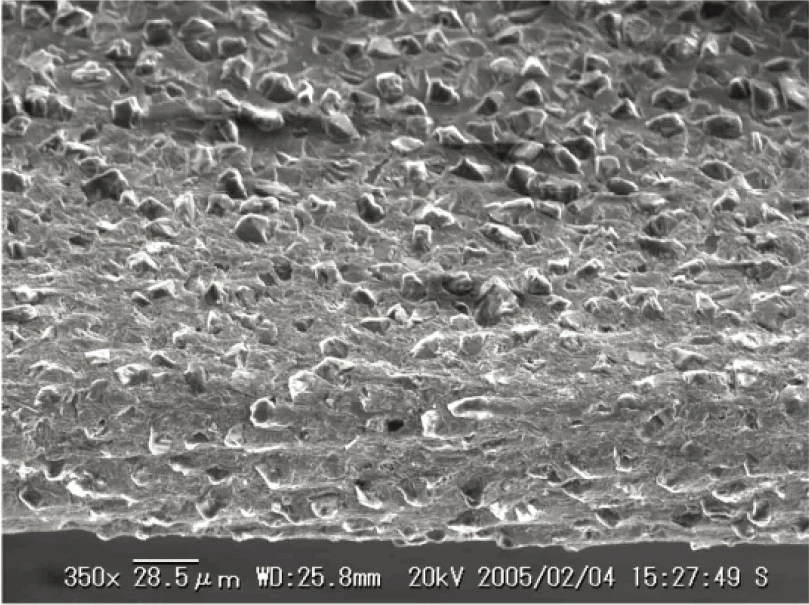

Blade surface after initial dressing(Nickel blade #800)
n = 30,000 1/min
f = 50 mm/sec
△s = 0.5 mm
N = 50
Eliminate the clogging of the blade by the dressing under the suitable condition
